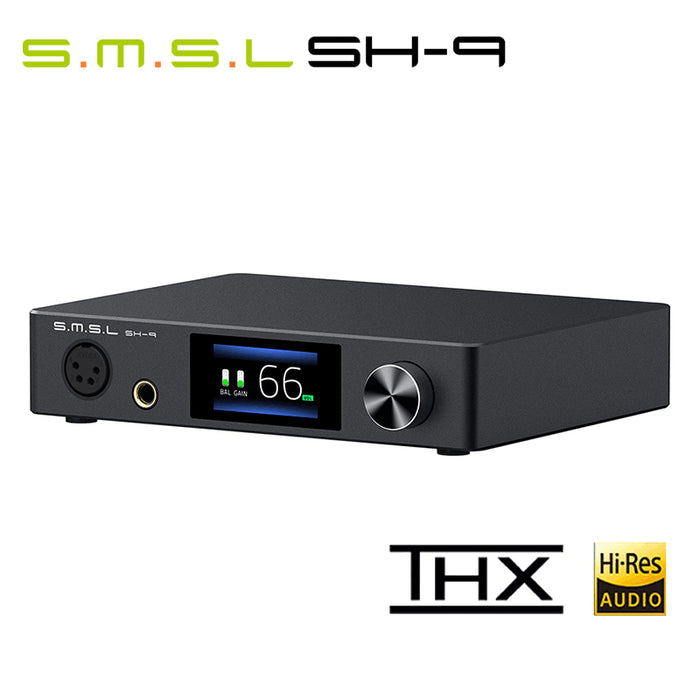

SMSL SH-9 Headphone Amplifier 6.35MM Balanced

Features

●THXAAA-888 Headphone Amplifier with THX AAA Technology;
●6 Watts into 16 Ohm, 3 Watts into 32 Ohm Headphones with lowest THD+N ;
●0.1 Hz to 500 kHz(-3dB) Frequency Response ;
●SNR>137dB ;
●THD<0.00006% ;
●Ultra-Compact Design, Perfect for Desktop Systems;
●Balanced Stereo Headphone Output ;
●Balanced Stereo Line Input;
●High Precision Resistors for Temperature Stability ;
●Pop-less Design with High-Quality Relays;
●High precision and low noise 256 level relay volume control;
*In actual use, in order to make the volume more linear, the extra levels are shielded.
●2 Positions Switchable Gain Control ;
●Fully Protection with DC, Over-Voltage, Over-Current, Short-Circuit and
Thermal Protection on Headphone Amplifier ;
●High-Efficiency Ultra-Low-Noise Power Supply .
●1.9 inch LCD display.

Specifications

■Audio Section:
Inputs:Balanced x1, Unbalanced x1
Outputs:Balanced x1, Unbalanced x1
Output Power:6Wx2 (16 Ω),3Wx2 (32 Ω),440mW x2(300Ω),220mW x 2 (600 Ω)
SNR:137dB, A-Weighted
Output Noise: 1.9uV, A-Weighted
THD+N:-123dB, 0.00006% (A-Weighted)
THD+N:-117dB, 0.00013% (20-20kHz , 32 Ω, -3dB)
THD: -125dB, 0.00006% (1 kHz, 16 Ω, -3dB)
Input Impedance:47kΩ
Output Impedance:Near 0Ω
Frequency Response:0.1Hz-500kHz(-3dB)
Gain:Low(+0dB), High(+ 10dB)
■General Section:
Power supply voltage/frequency: AC100-240V, 50-60 Hz
Power consumption(EN60065):
24 W
Power consumption in standby mode:<0.1W
Size:187.5x154x40(mm)
Packing size:282x232x79(mm)
Weight:790g

Remote control

●Install 2 x AAA batteries as instructions.
●When using the remote control, point it toward the remote control signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place
obstructions between the main unit and the remote control.
●The remote control might not work if the remote control signal receiver on the unit is exposed to direct sunlight or bright light. If this occurs, try moving the unit.Beware that use of this remote control could cause the unin-tentional operation of other devices that can be controlled by infra.

Note

1. This remote controller use 2 x R03/AAA batteries.
2. When you first operate SH-9, press the B key first.
