What Are Frequency Response (FR) Curves? A small Guide for Headphones & Earphones

Frequency response (FR) curves are the secret behind why headphones and earphones sound the way they do. If you're shopping for new earphones, comparing over-ear headphones, or just curious why one pair feels bass-heavy while another sounds crystal-clear, understanding FR curves is essential.

What Is a Frequency Response Curve?

A frequency response curve (FR curve) is a graph that shows exactly how a pair of headphones or earphones reproduces every audible frequency from 20 Hz (deep bass rumble) to 20 kHz (high treble sparkle).

• X-axis = frequency (low to high)
• Y-axis = volume in decibels (dB) — how much louder or quieter each frequency is compared to a neutral reference

An ideal “flat” curve would play every note at exactly the same volume for perfectly neutral sound. In reality, no headphone or earphone is perfectly flat — and that’s what creates their unique “sound signature.”

How to Read FR Curves on Headphones and Earphones

Reading an FR curve is easier than it looks:

• A peak upward = boosted frequencies (louder bass or treble)
• A dip downward = reduced frequencies (quieter mids or highs)
• A mostly flat line = neutral, accurate sound

Professional measurements use dummy-head rigs (like GRAS 43AG). You’ll find reliable graphs on sites such as RTINGS.com.

An explanation diagram from review site headphonesaddict.

The graph above clearly labels the regions you need to know.

Key Frequency Regions That Shape Your Music

FR curves are divided into three main areas that directly affect what you hear:

• Bass (20–250 Hz): Sub-bass (20–60 Hz) delivers rumble; mid-bass (60–250 Hz) gives punch. A boost here makes music feel fun and energetic.
• Midrange (250 Hz–4 kHz): The “heart” of vocals, guitars, and instruments. Too much boost = muddy; too much dip = thin or hollow.
• Treble (4–20 kHz): Adds sparkle, air, and detail. Excessive treble = harsh or sibilant; rolled-off treble = dull.

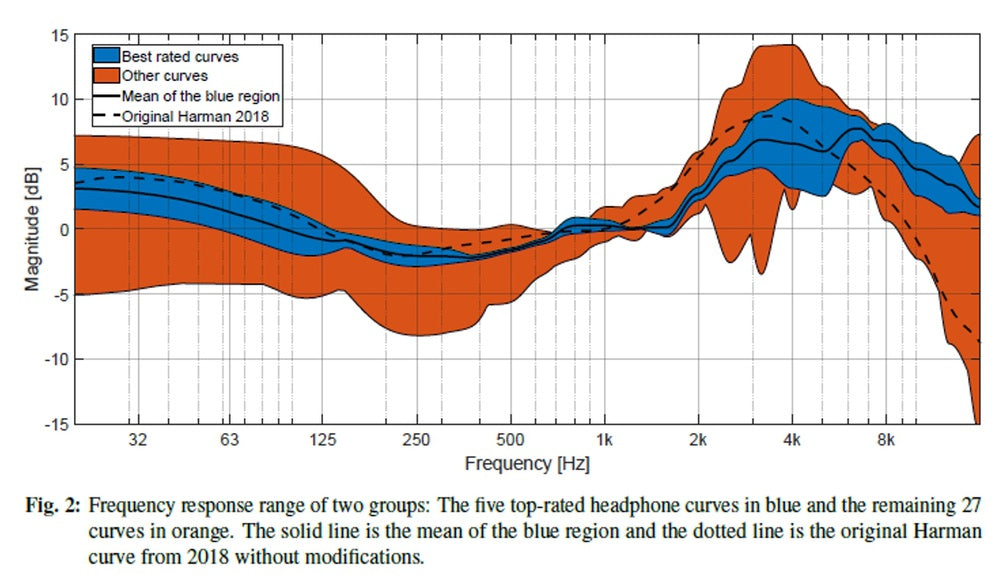

The Harman Target Curve — The Most Popular Reference

Researchers at Harman (parent of JBL, AKG, etc.) tested thousands of listeners and created the Harman Target Curve. It includes a gentle bass lift, smooth mids, and a controlled treble rise — the curve most people actually prefer for everyday listening.

Many modern headphones and earphones are tuned close to this curve because it simply sounds “right” to most ears.

Sound Signatures Explained by FR Curves

Different shapes = different personalities:

• V-shaped — Strong bass + bright treble, recessed mids → exciting for pop, EDM, hip-hop
• Neutral — Close to Harman or flat → accurate for studio work or classical
• Warm/Dark — Bass-heavy, softer treble → relaxed for long listening sessions
• Bright — Extra treble emphasis → detailed but can fatigue quickly

Why FR Curves Matter (and Their Limitations)

Frequency response curves are the single best predictor of tonal balance — far better than vague marketing terms like “warm” or “detailed.” They help you:

• Compare models side-by-side
• Decide if a pair matches your taste
• Use EQ apps (Wavelet, Poweramp, or AutoEQ) to correct the curve

Important limitations to remember:

• FR curves don’t show distortion, soundstage, imaging, or build quality
• Personal preference varies — some people love curves far from Harman
• Seal (especially on earphones/IEMs) dramatically changes the measured curve

Key Points to Understand FR Curves

Here are the 7 must-know takeaways:

1. FR curves show tonal balance, not overall sound quality.
2. No curve is universally “best” — Harman is popular but not mandatory.
3. Always compare to a target (Harman, Diffuse Field, or your favorite reviewer’s curve).
4. Earphones are more sensitive to fit and seal than over-ear headphones.
5. EQ can dramatically improve any FR curve in seconds.
6. Graphs guide you — your ears make the final decision. Try before you buy when possible.

Final Thoughts

Mastering frequency response (FR) curves takes the guesswork out of choosing headphones and earphones. Next time you read a review or shop online, you’ll know exactly what the graph means and whether it matches the music you love.

Ready to upgrade? Search for your favorite model’s FR curve on RTINGS or Headphones.com, compare it to the Harman target, and you’ll make a smarter purchase every time.
