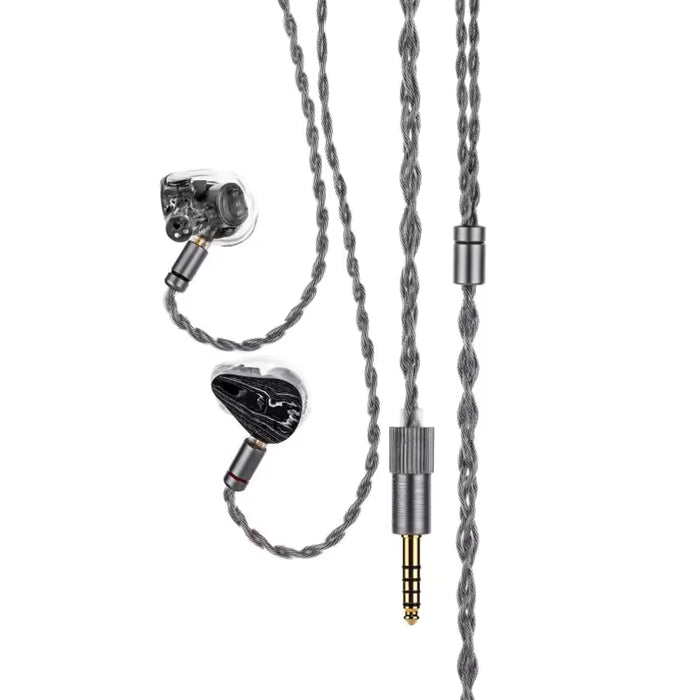

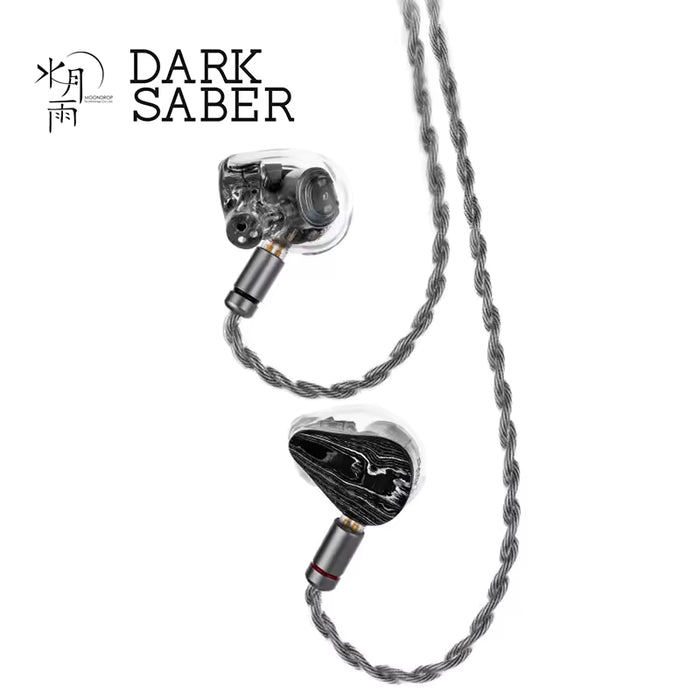

MOONDROP Dark Saber Flagship Hybrid In-Ear Monitor
The MOONDROP Dark Saber is a flagship hybrid in-ear monitor engineered for audiophiles seeking powerful dynamics, natural tonality, and exceptional resolution. Featuring a sophisticated 2DD + 8BA driver configuration with the proprietary H.O.D.D.D.U.S. dual dynamic driver module, it delivers punchy, distortion-free bass, clear midrange, and extended treble while maintaining full-frequency phase coherence and a refined, immersive soundstage.

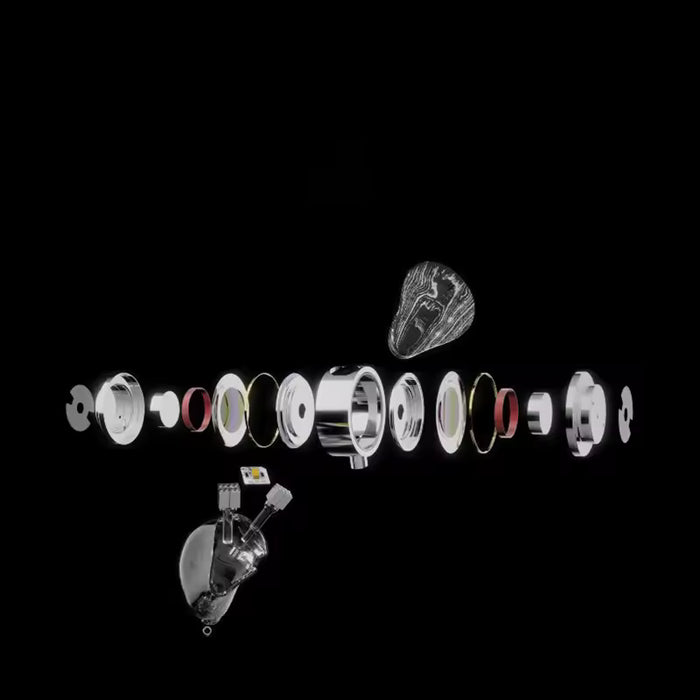

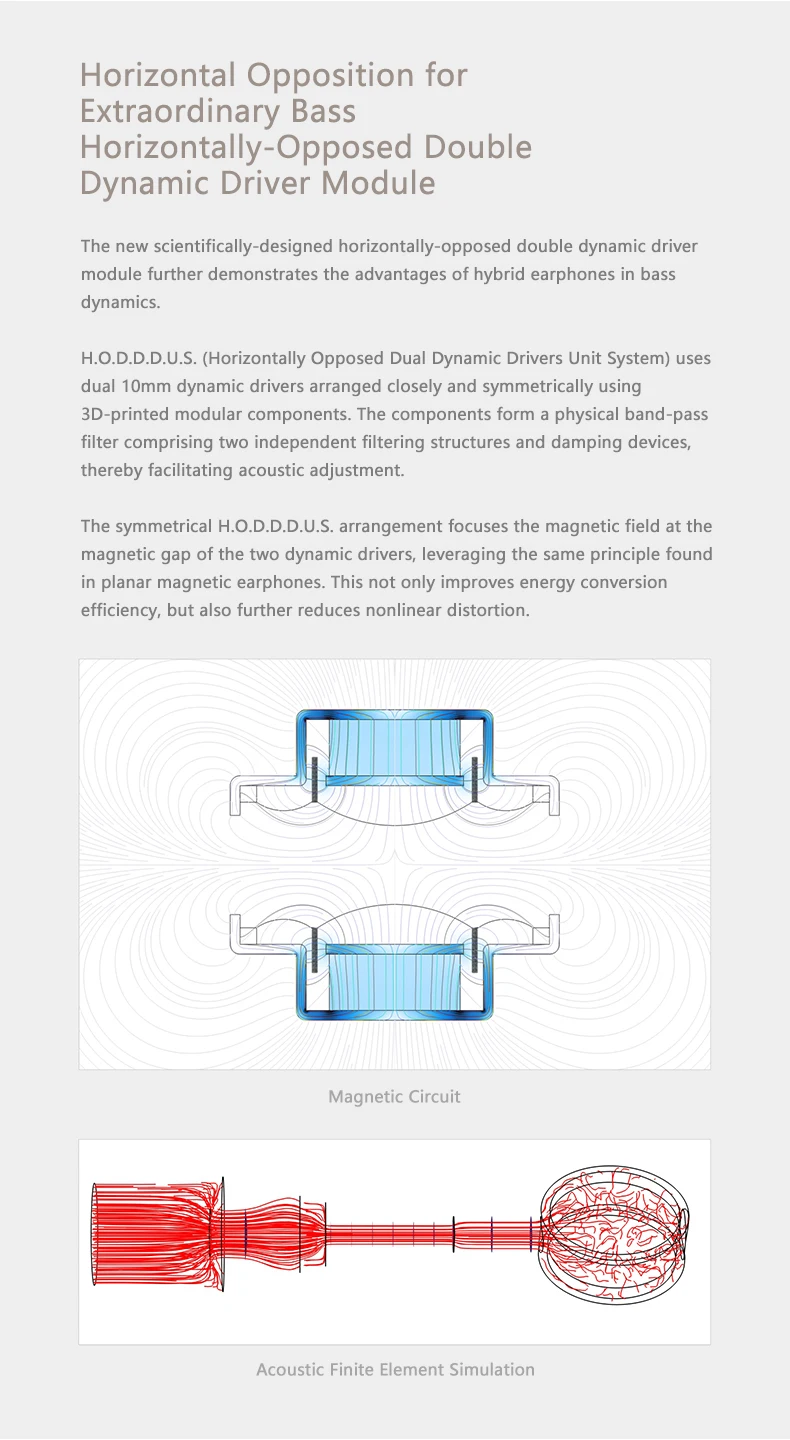

H.O.D.D.D.U.S. Horizontally Opposed Dual Dynamic Drivers Unit System
At the core of the Dark Saber’s exceptional low-frequency performance is the H.O.D.D.D.U.S. (Horizontally Opposed Dual Dynamic Drivers Unit System). Two complete 10mm dynamic drivers are arranged in precise horizontal opposition and integrated via CNC-machined modular components. This design optimizes magnetic field uniformity, improves energy conversion efficiency, and significantly reduces non-linear distortion, resulting in powerful, controlled, and highly responsive bass that remains clean and impactful across the entire dynamic range.

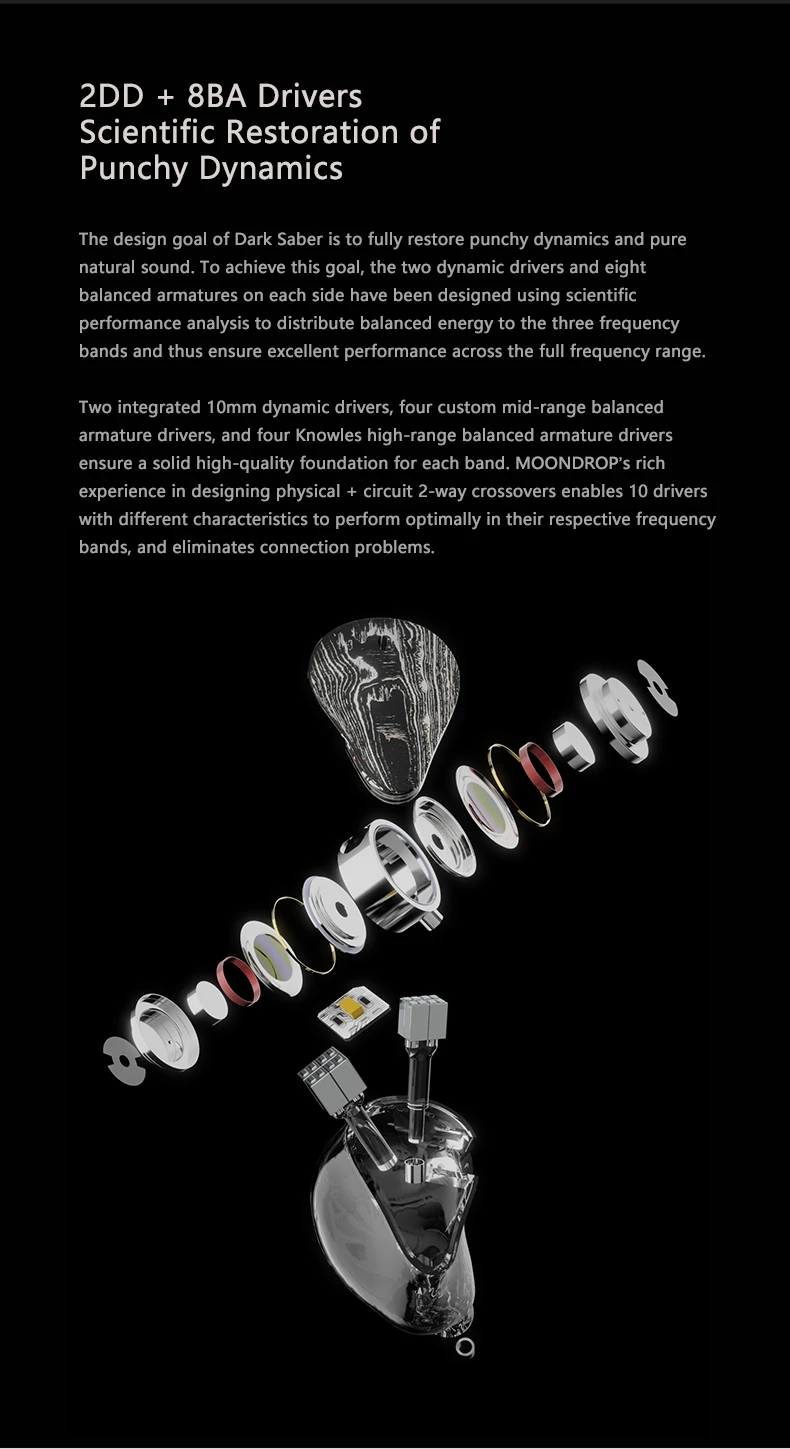

2DD + 8BA Hybrid Driver Configuration with Precision Crossover
Each earpiece houses two 10mm dynamic drivers for bass, four customized balanced armature drivers dedicated to the midrange, and four Knowles SWFK balanced armature drivers for the treble. Drawing on MOONDROP’s extensive experience in both physical and electrical crossover design, the ten drivers operate optimally within their assigned frequency bands. This dual-crossover approach ensures seamless integration, eliminates transition artifacts, and delivers coherent, high-resolution performance from the deepest sub-bass to the uppermost treble.

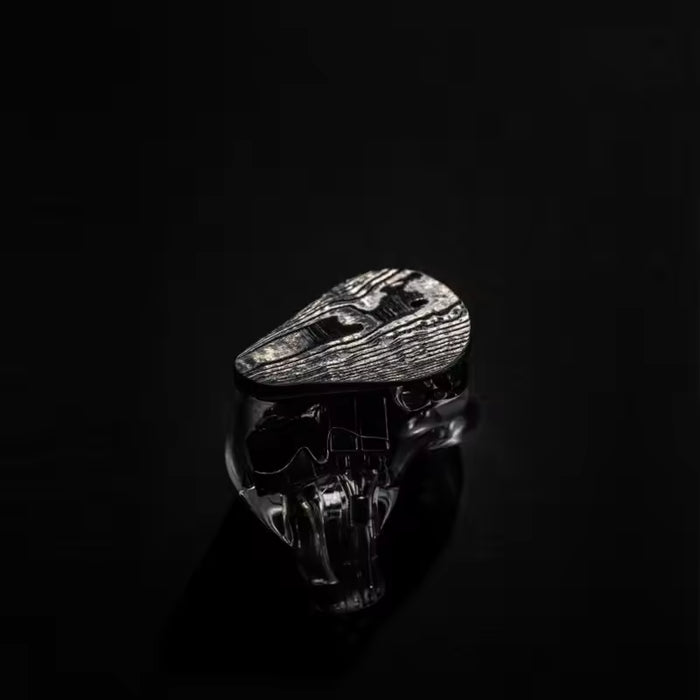

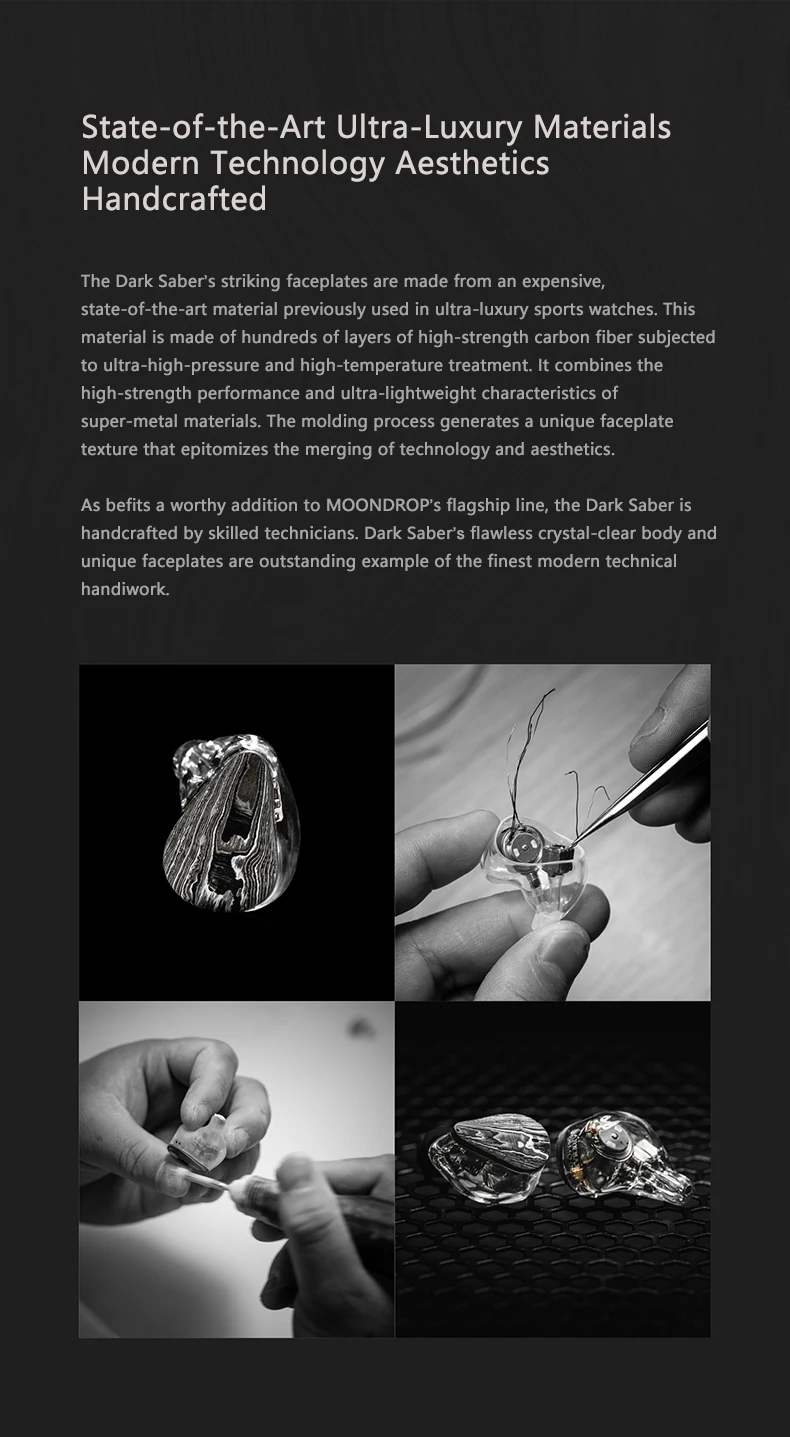

Premium Multi-Layer Carbon Fiber Faceplates and Handcrafted Construction
The Dark Saber’s distinctive faceplates are crafted from hundreds of layers of high-strength carbon fiber subjected to extreme pressure and temperature processing—the same advanced material used in ultra-luxury sports watches. Each faceplate features a unique, one-of-a-kind texture that combines exceptional rigidity with ultra-lightweight properties. The transparent resin shells are meticulously hand-finished by skilled technicians, resulting in a crystal-clear, near-flawless aesthetic that elevates the earphones into modern technical art pieces.
High Sensitivity and Easy Driveability
With an impressive sensitivity of 128dB/Vrms and a low impedance of 22Ω ±15% at 1kHz, the Dark Saber is exceptionally easy to drive. It reaches satisfying volume levels and full dynamic expression from virtually any source, including portable players, smartphones, and modest amplifiers, without requiring high-powered amplification.
Full-Frequency Phase Alignment and Reference Tuning
The Dark Saber is engineered for full-frequency phase consistency and tuned to deliver pure, natural sound with excellent resolution and a spacious soundstage. This careful acoustic design ensures accurate instrument placement, natural vocal reproduction, and a balanced presentation that remains engaging across a wide variety of musical genres.

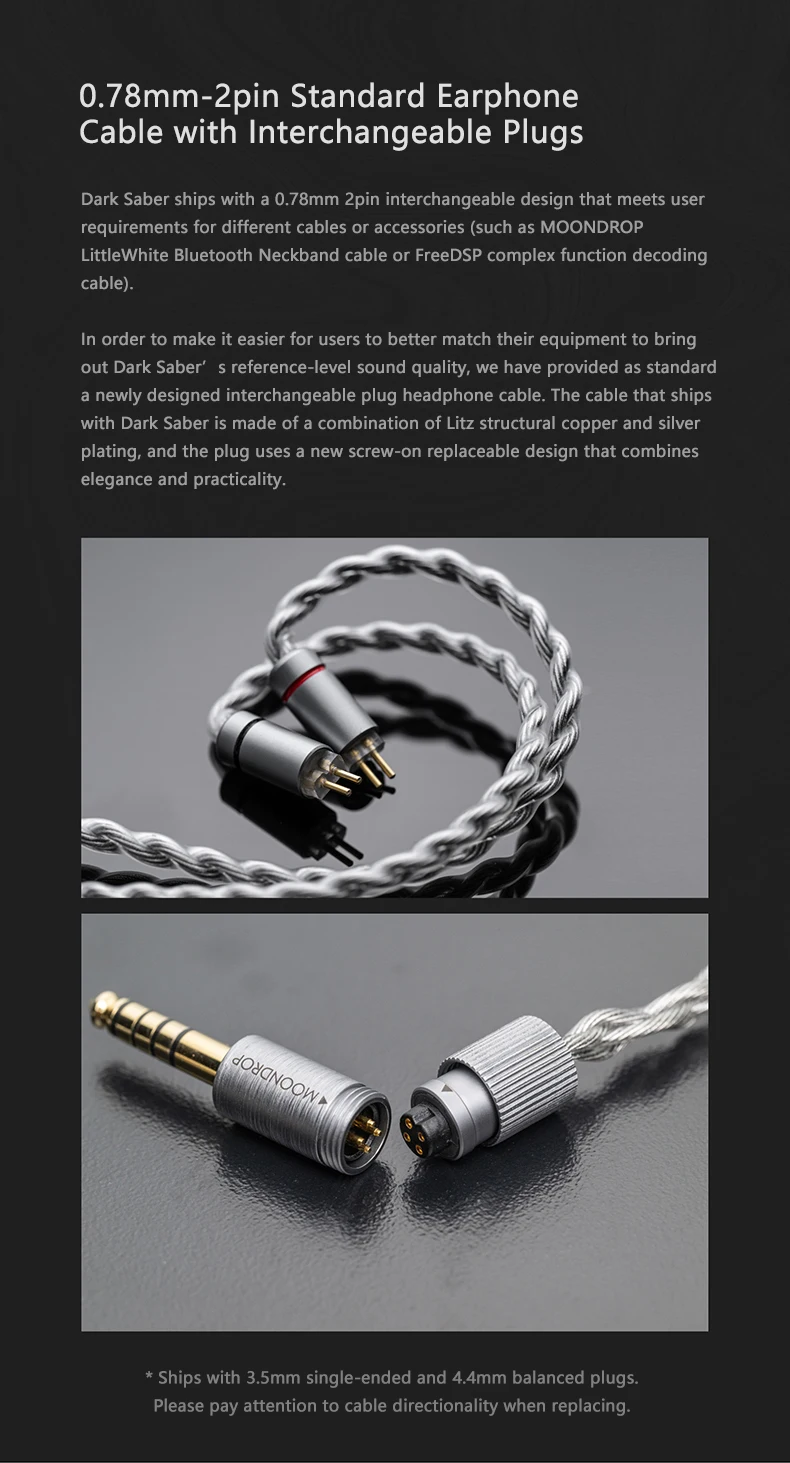

Detachable Cable with Modular Terminations

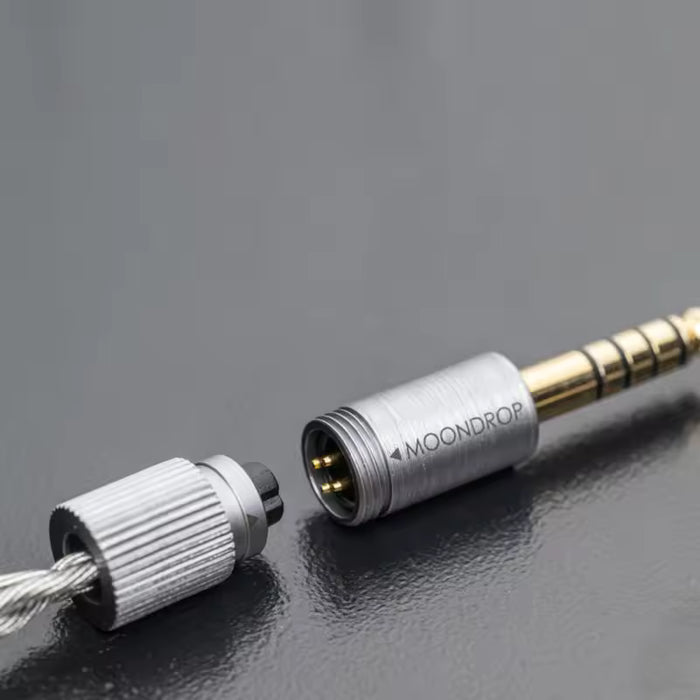

The earphones feature industry-standard 0.78mm 2-pin connectors for broad cable compatibility. The included high-quality Litz-structure cable uses a hybrid of pure copper and silver-plated copper conductors and comes with a newly designed modular, screw-lock interchangeable termination system supporting both 3.5mm single-ended and 4.4mm balanced plugs for maximum system flexibility.
About MOONDROP
MOONDROP (水月雨) is a respected manufacturer specializing in high-fidelity in-ear monitors and audio equipment. Known for rigorous measurement-based engineering, innovative driver technologies, and a distinctive blend of technical precision with artistic design, MOONDROP has built a global following among audiophiles seeking refined, natural, and highly resolving sound.

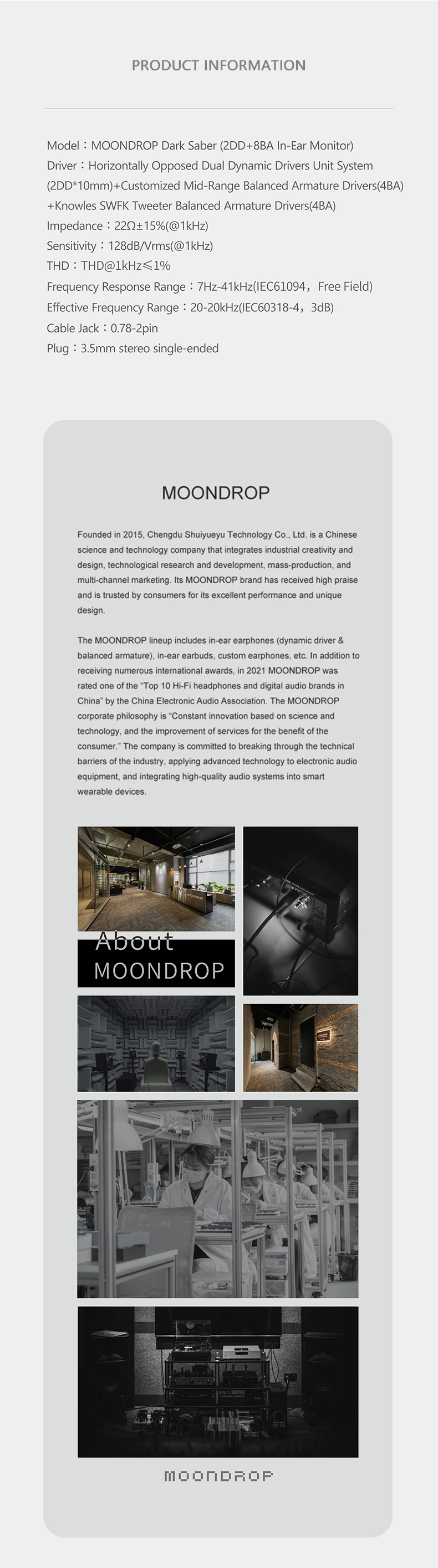

Technical Specifications
Model: MOONDROP Dark Saber (2DD + 8BA In-Ear Monitor)
Driver: Horizontally Opposed Dual Dynamic Drivers Unit System (2 × 10mm DD) + Customized Mid-Range Balanced Armature Drivers (4BA) + Knowles SWFK Tweeter Balanced Armature Drivers (4BA)
Impedance: 22Ω ±15% (@1kHz)
Sensitivity: 128dB/Vrms (@1kHz)
THD: ≤1% (@1kHz)
Frequency Response Range: 7Hz–41kHz (IEC61094, Free Field)
Effective Frequency Range: 20Hz–20kHz (IEC60318-4, 3dB)
Cable Jack: 0.78mm 2-pin
Plug: 3.5mm Stereo Single-Ended (with interchangeable 4.4mm balanced option)
Q&A
What is the driver configuration of the MOONDROP Dark Saber?
It uses a hybrid 2DD + 8BA setup per side: two 10mm dynamic drivers in the H.O.D.D.D.U.S. module for bass, four customized balanced armature drivers for midrange, and four Knowles SWFK balanced armature drivers for treble.
What is H.O.D.D.D.U.S.?
H.O.D.D.D.U.S. stands for Horizontally Opposed Dual Dynamic Drivers Unit System. It places two 10mm dynamic drivers in precise horizontal opposition to optimize magnetic fields, improve efficiency, and reduce non-linear distortion for superior bass performance.
How easy is the Dark Saber to drive?
With 128dB/Vrms sensitivity and 22Ω impedance, it is very easy to drive from portable sources, smartphones, and most amplifiers.
What materials are used for the faceplates?
The faceplates are made from hundreds of layers of high-strength carbon fiber processed under extreme pressure and temperature, the same advanced material used in ultra-luxury sports watches, giving each pair a unique texture.
Does the cable support balanced connections?
Yes. The included modular cable features interchangeable terminations and supports both 3.5mm single-ended and 4.4mm balanced plugs.
What is the frequency response of the Dark Saber?
The frequency response range is 7Hz–41kHz (IEC61094, Free Field), with an effective frequency range of 20Hz–20kHz (IEC60318-4, 3dB).
