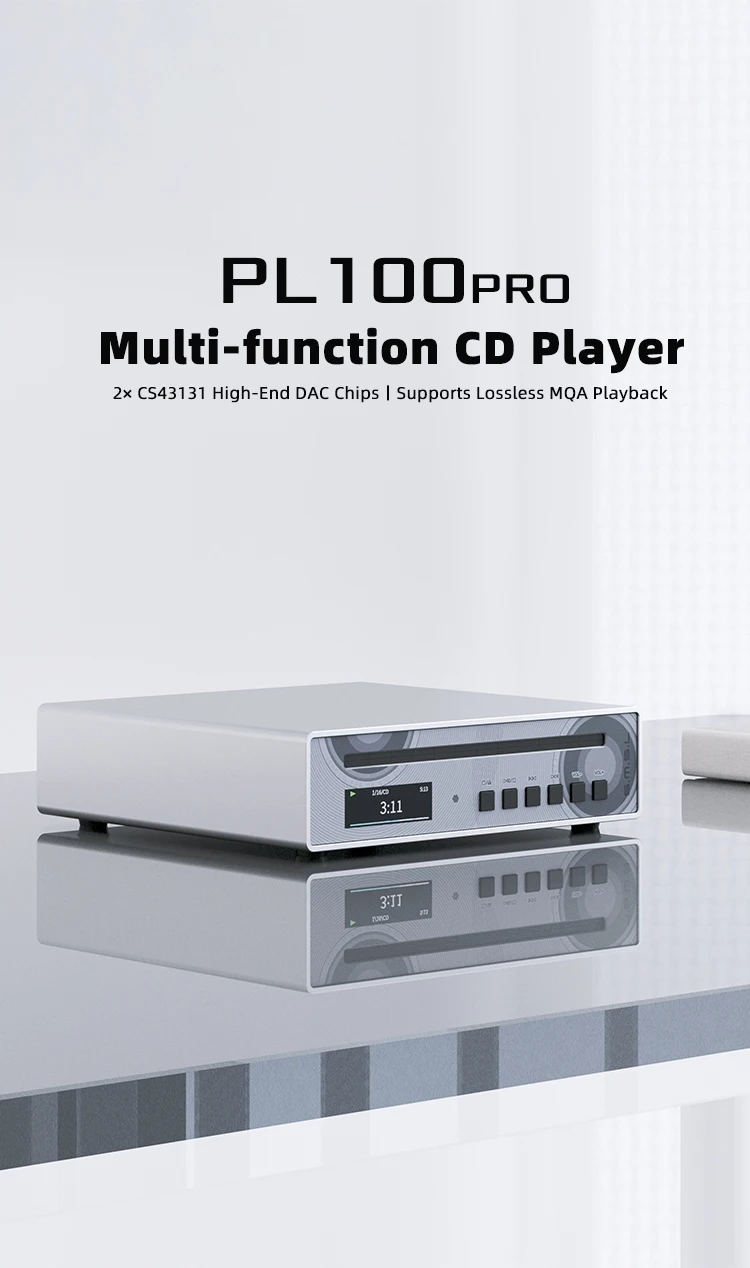

S.M.S.L PL100 Pro MQA-CD Player & Headphone Amplifier
The S.M.S.L PL100 Pro is a high-performance MQA-CD player designed to bring out the ultimate potential of your physical compact disc collection. Combining precision engineering with an advanced acoustic architecture, it delivers pristine audio reproduction, robust headphone driving capabilities, and versatile pre-amp functionality for modern desktop and home audio setups.
Dual CS43131 High-End DAC Architecture
At the core of the PL100 Pro are dual Cirrus Logic CS43131 high-end decoding chips. This dual-chip configuration optimizes channel separation and signal clarity, drastically reducing noise and distortion to reveal hidden layers, spatial depth, and micro-details in your favorite music tracks.

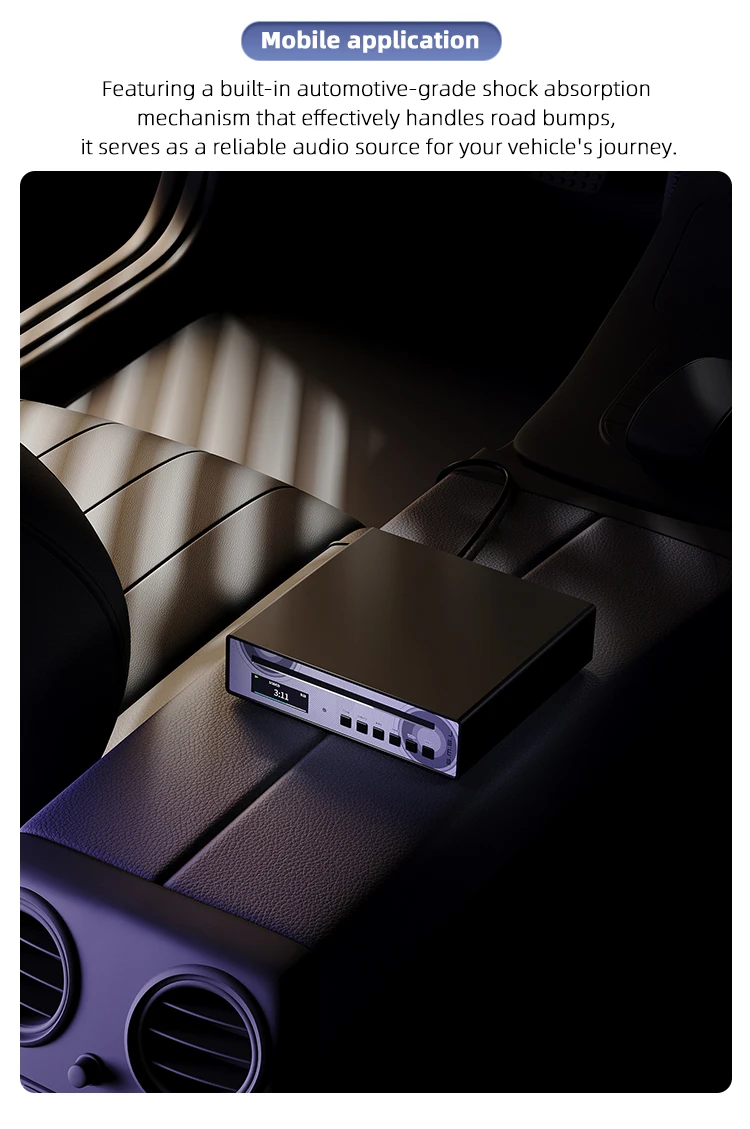

Automotive-Grade Slot-In Mechanism and Anti-Shock Design
The player is built around an automotive-grade slot-in motor assembly designed for long-lasting vibration resistance and stability. This robust mechanical engineering makes it exceptionally reliable, ensuring smooth disc loading and stable playback even in demanding environments.

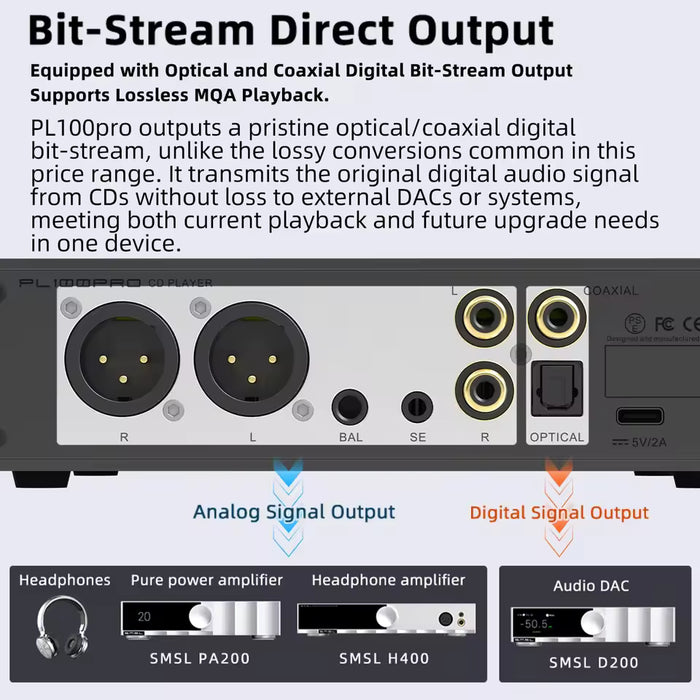

MQA-CD Support and Digital Bit-Perfect Outputs
The PL100 Pro natively supports lossless MQA-CD playback and features optical and coaxial digital outputs that support MQA pass-through. This allows users to connect the player directly to an external high-end MQA decoder to unlock studio-master quality sound.

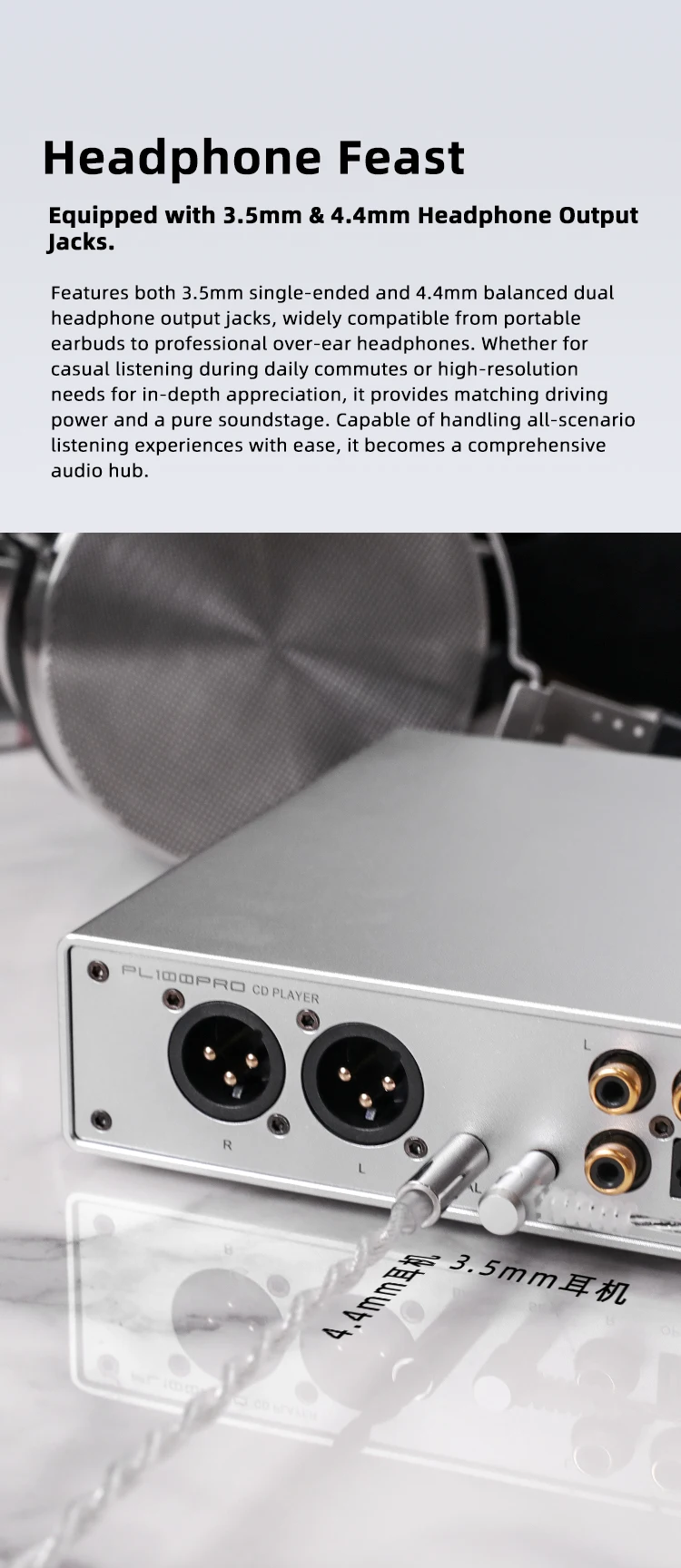

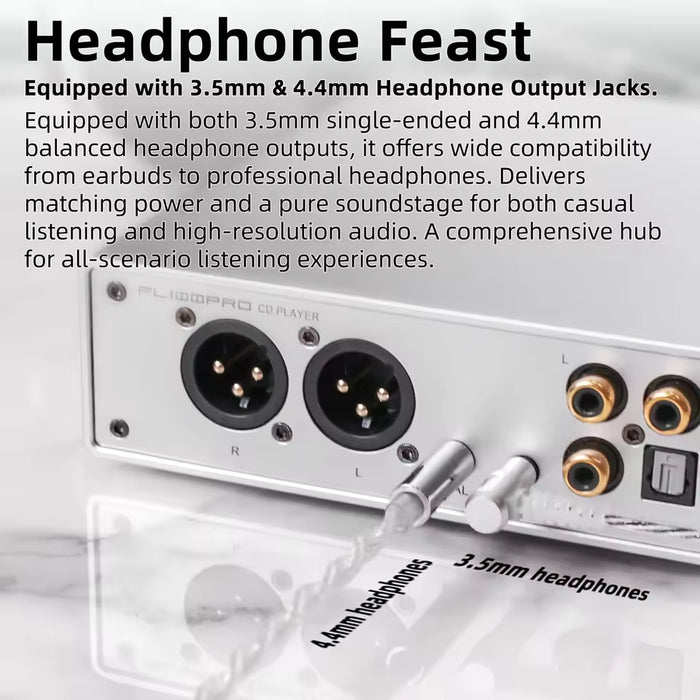

High-Power Balanced and Single-Ended Headphone Outputs
Equipped with both a 4.4mm balanced and a 3.5mm single-ended high-power headphone output, the PL100 Pro easily drives a wide variety of earphones and over-ear headphones with exceptional authority, dynamic range, and tonal accuracy.
Versatile Balanced XLR and RCA Line Outputs with Pre-Amp Functionality
Featuring professional-grade balanced XLR and single-ended RCA analog line outputs, the unit offers adjustable output volume and comprehensive pre-amp functionality. It integrates seamlessly into traditional hi-fi stereo systems, active monitors, or desktop power amplifier chains.

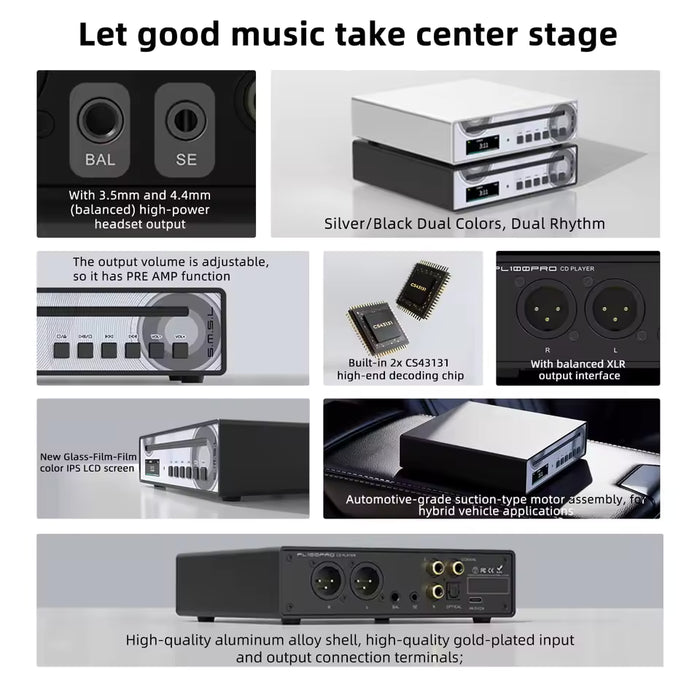

Premium Aluminium-Alloy CNC Shell and IPS Display
The chassis is meticulously crafted from high-quality aluminum alloy using precise CNC machining techniques. It features a vibrant, fully-laminated color IPS LCD display screen and high-quality gold-plated input/output terminals, combining modern durability with an elegant visual aesthetic.
About SMSL
Foshan ShuangMuSanLin Electronics Co., Ltd. (SMSL) is a globally recognized manufacturer specializing in high-fidelity desktop and home audio equipment. Renowned for innovative engineering, rigorous performance benchmarks, and exceptional value, SMSL produces a wide range of digital-to-analog converters, amplifiers, and high-resolution players trusted by audiophiles worldwide.

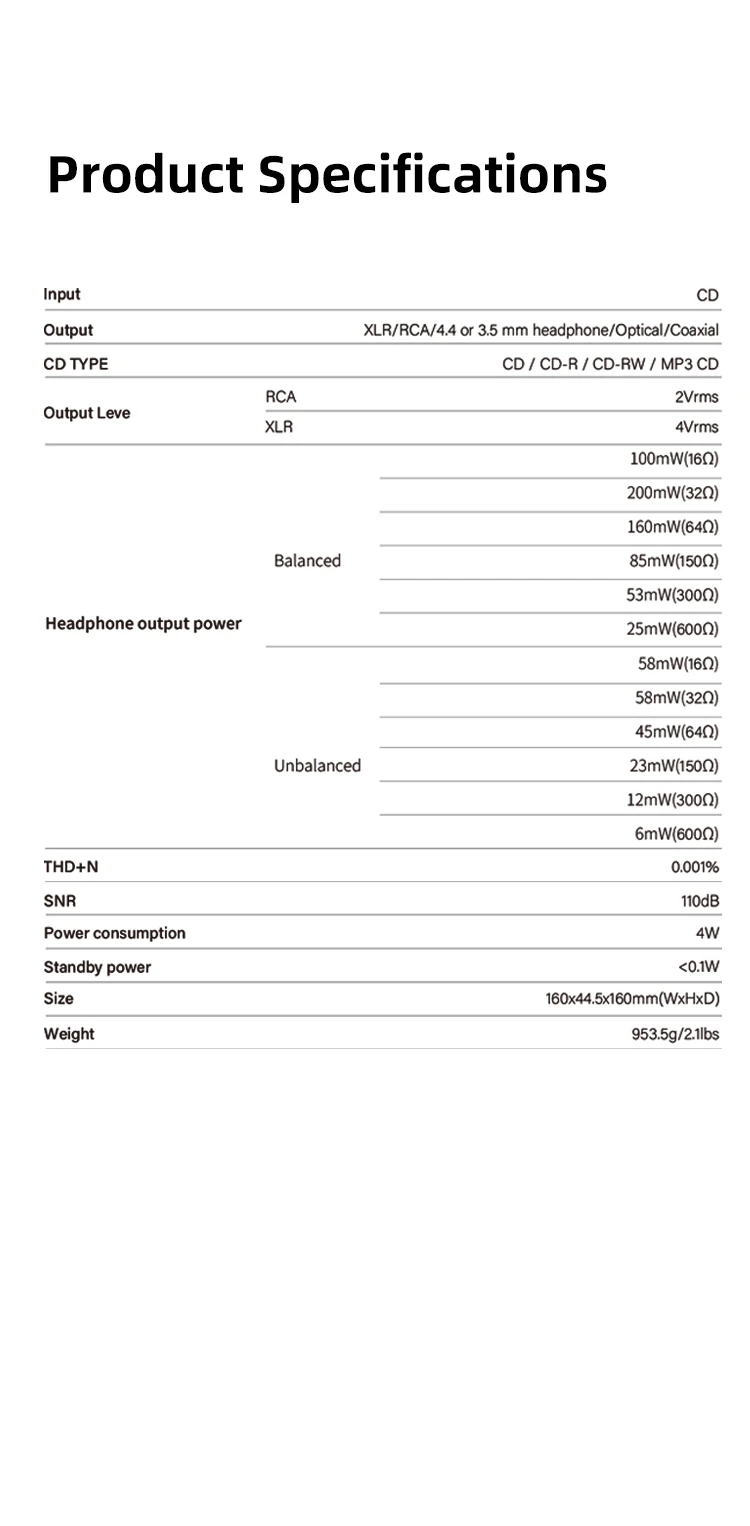

Technical Specifications

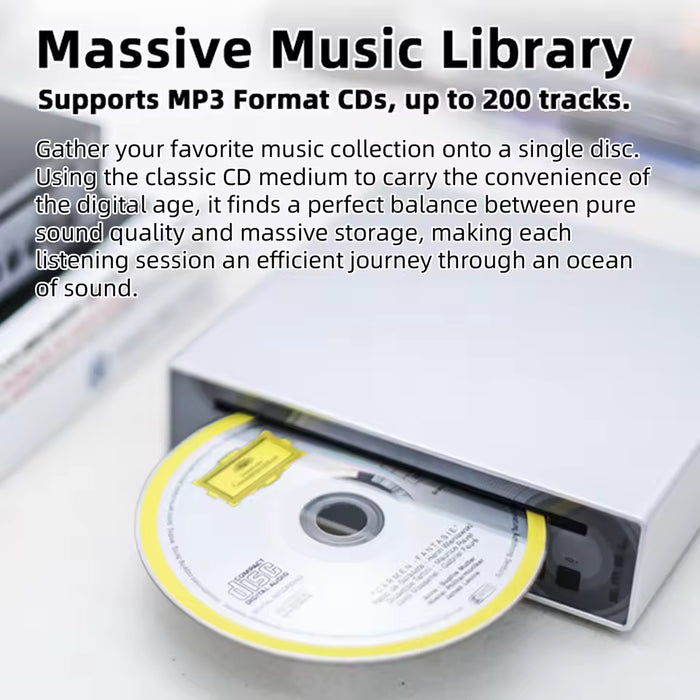

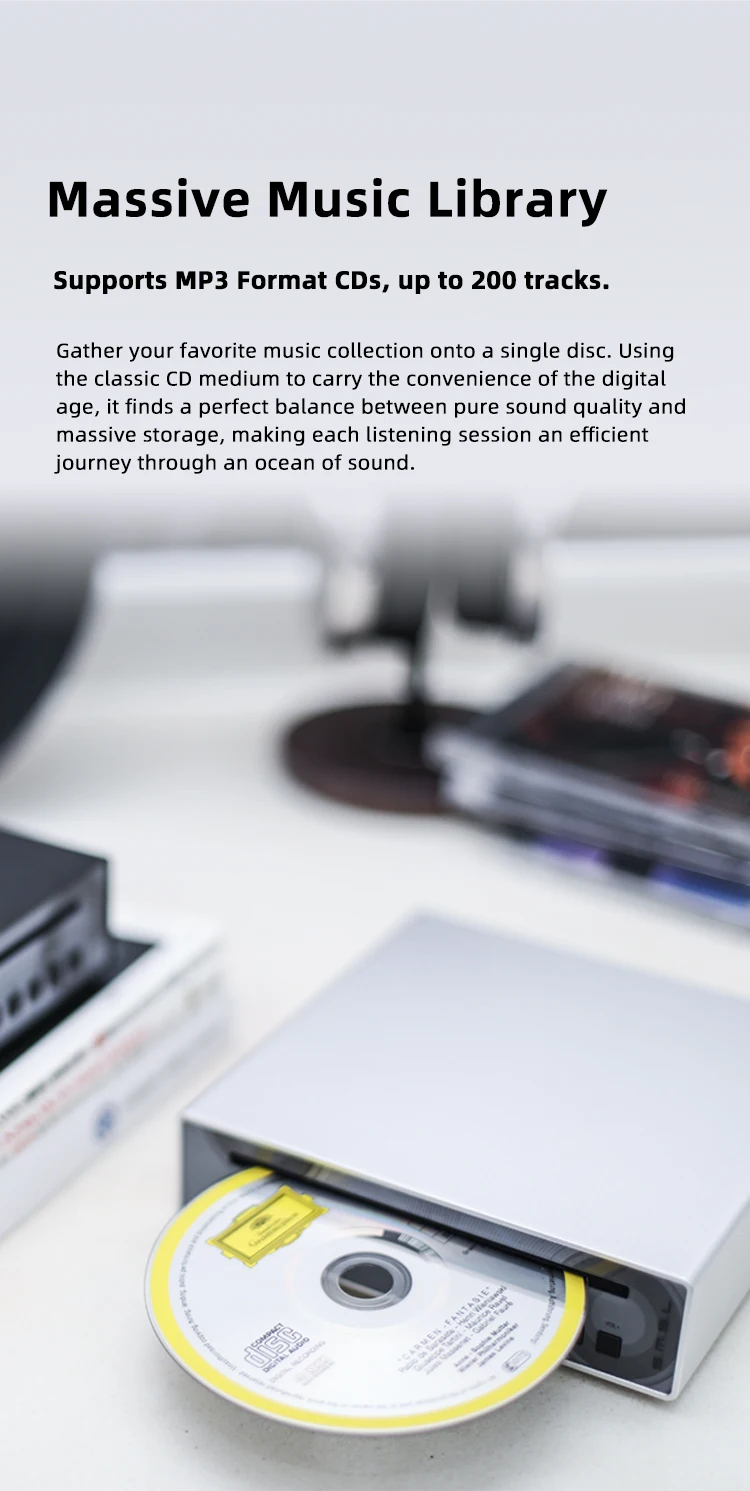

Supported Disc Formats: Audio CD, CD-R, CD-RW, MP3 CD (supports up to 200 tracks)
DAC Chips: Dual Cirrus Logic CS43131 high-end decoding chips
Analog Outputs: Balanced XLR, Single-ended RCA, 4.4mm balanced headphone output, 3.5mm single-ended headphone output
Digital Outputs: Optical, Coaxial (supporting MQA pass-through)
Display: Fully-laminated color IPS LCD display screen
Chassis Material: High-quality aluminium alloy with CNC machining

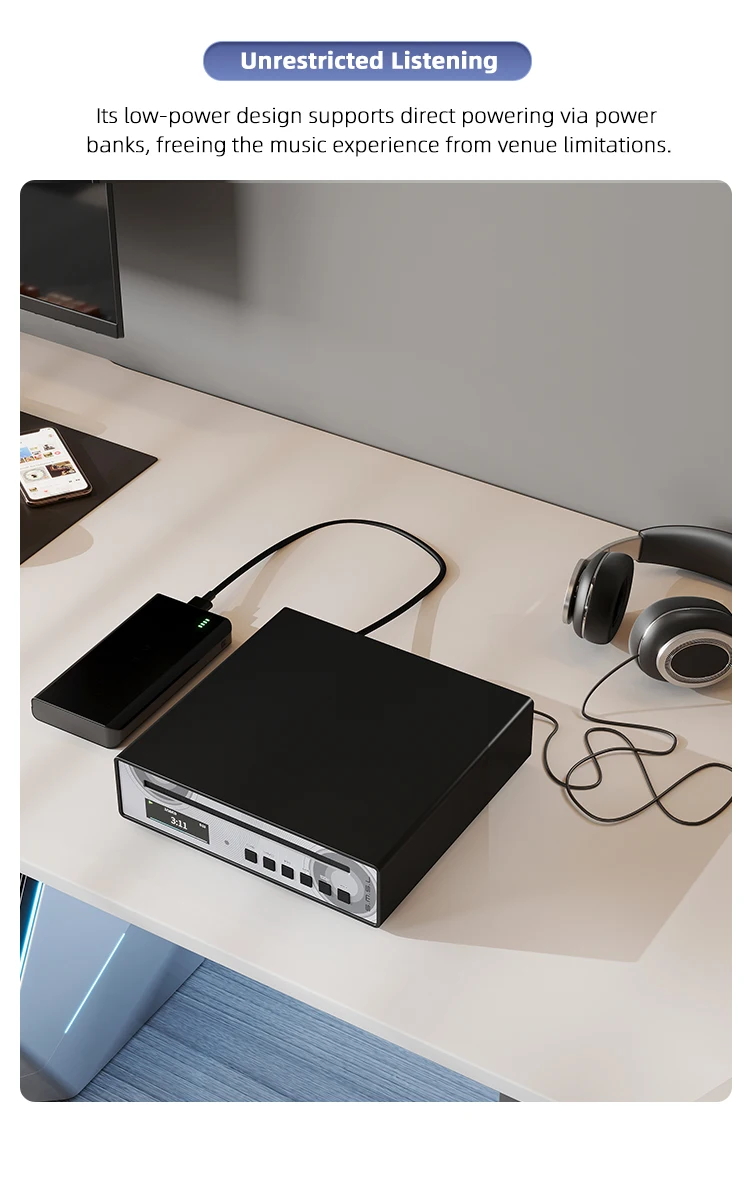

Power Input: USB-C (5V/2A)

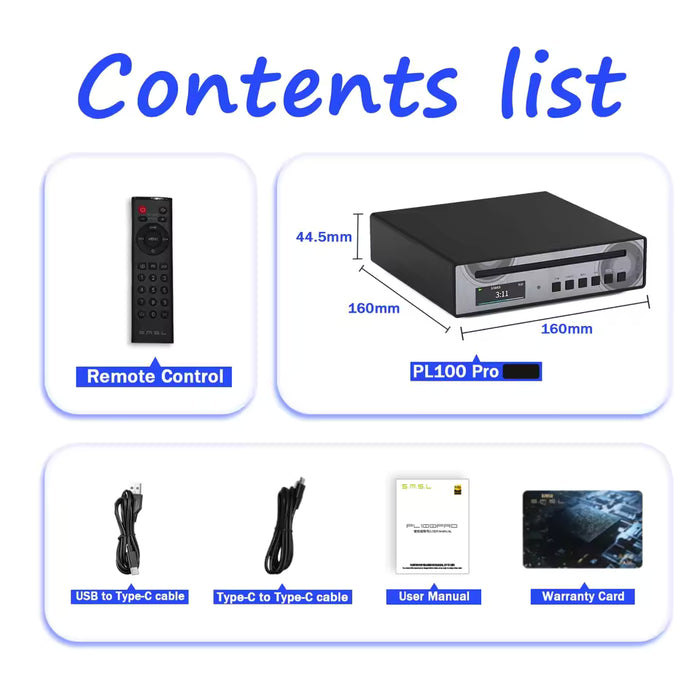

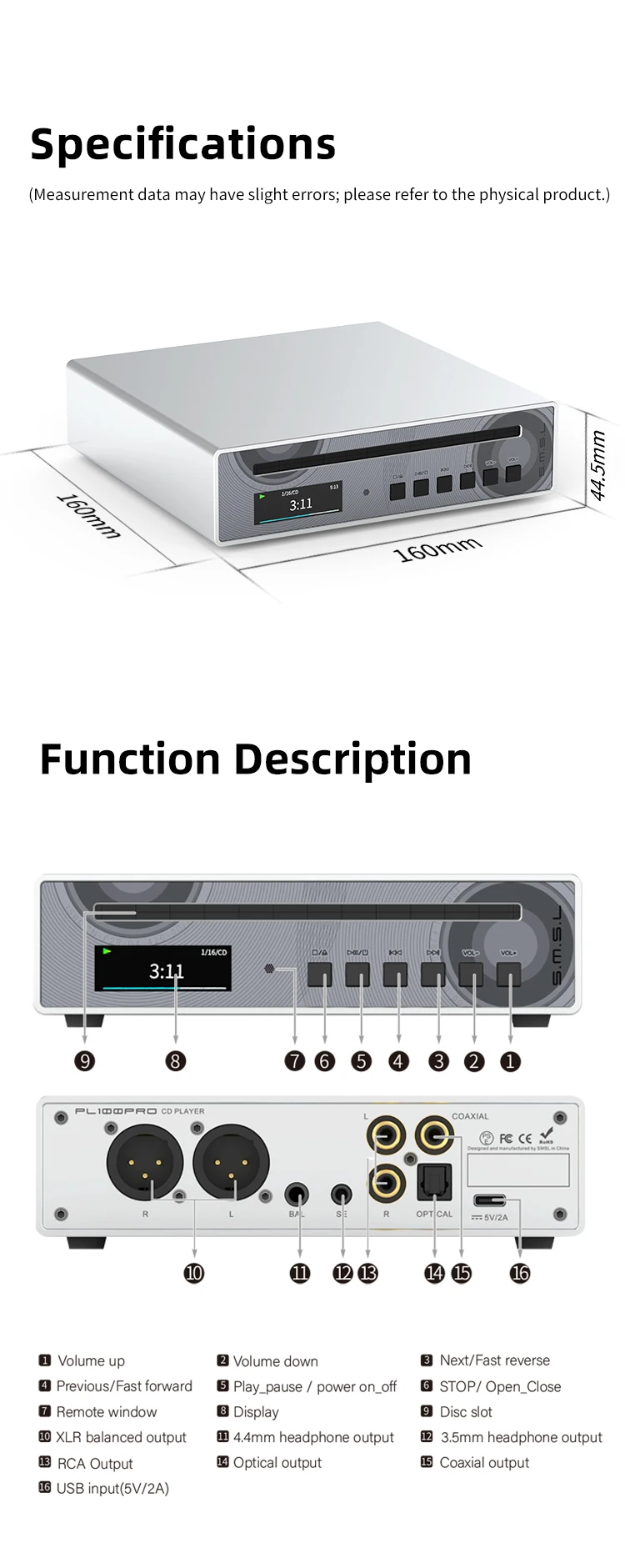

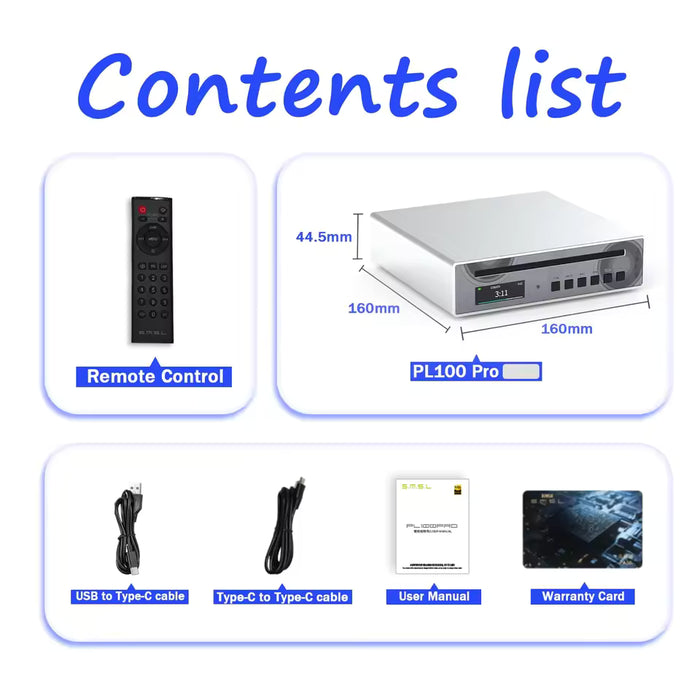

Dimensions & Weight: 160 × 44.5 × 160 mm, approx. 953.5g
Q&A
What types of discs can the SMSL PL100 Pro play?
It supports standard Audio CDs, CD-R, CD-RW, and MP3 CDs with support for up to 200 tracks.
What DAC chips are used in the PL100 Pro?
It features dual Cirrus Logic CS43131 high-end decoding chips for superior audio clarity.
Does it support MQA and MQA-CD playback?
Yes, it natively supports lossless MQA-CD playback and features digital outputs supporting MQA pass-through to external decoders.

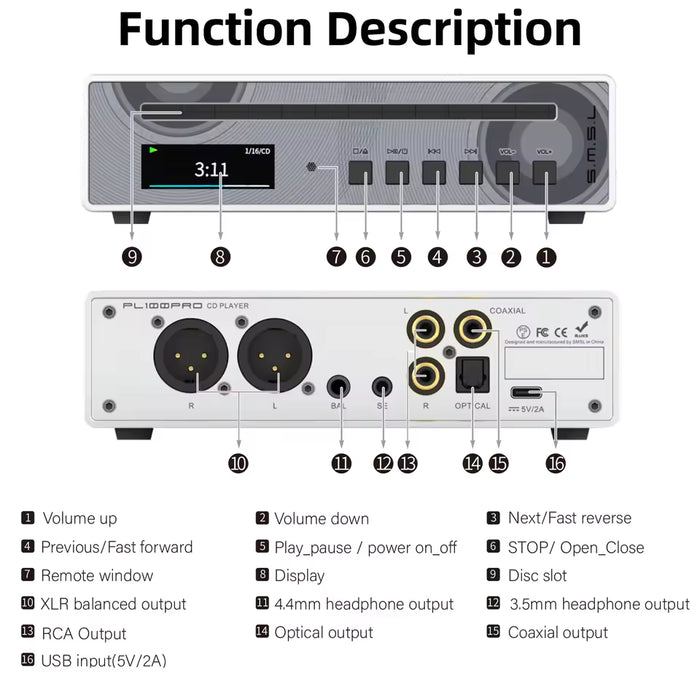

What headphone outputs are available on the unit?
It is equipped with both a 3.5mm single-ended and a 4.4mm balanced high-power headphone output.
Does the unit feature line outputs and pre-amp control?
Yes, it includes balanced XLR and single-ended RCA line-out ports with adjustable volume and pre-amp functionality.
