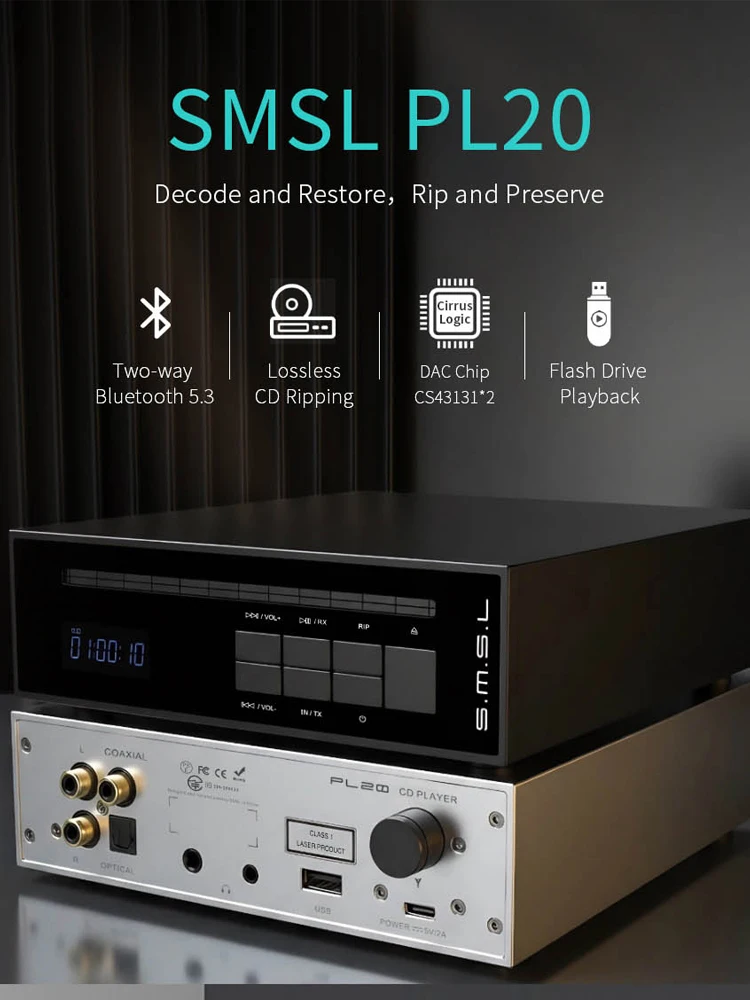

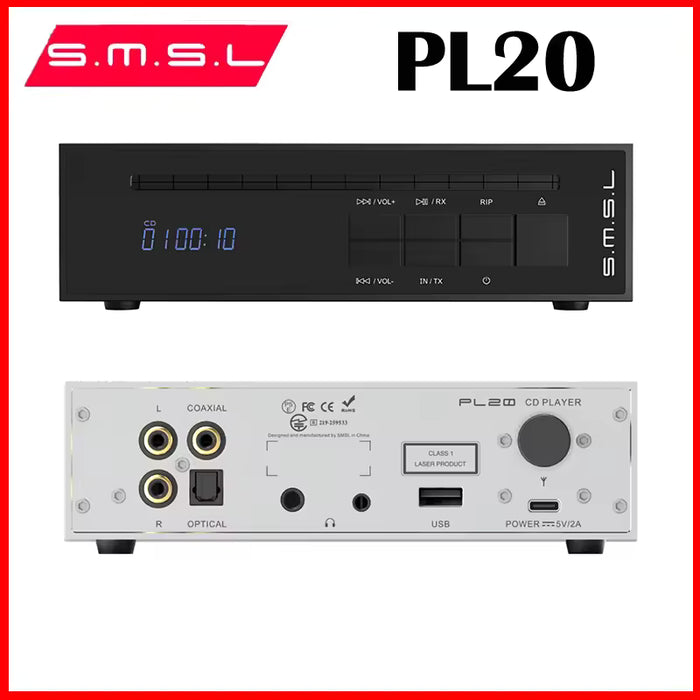

S.M.S.L PL20 Desktop CD Player
The S.M.S.L PL20 is a versatile compact desktop CD player designed as a modern bridge between physical music collections and digital convenience. Equipped with dual CS43131 DAC chips, one-touch lossless CD ripping, USB flash drive playback, and bidirectional Bluetooth 5.3, it delivers clean, detailed sound while offering practical features for both traditional CD listening and contemporary digital workflows.

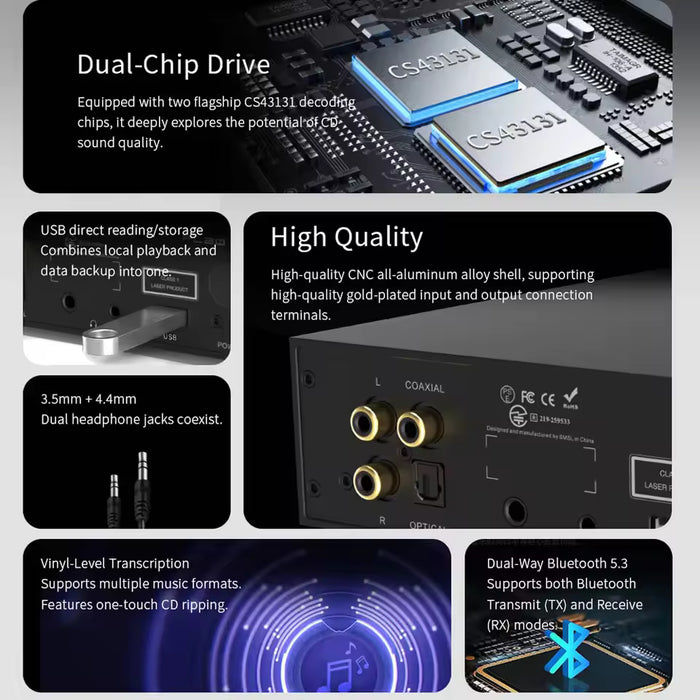

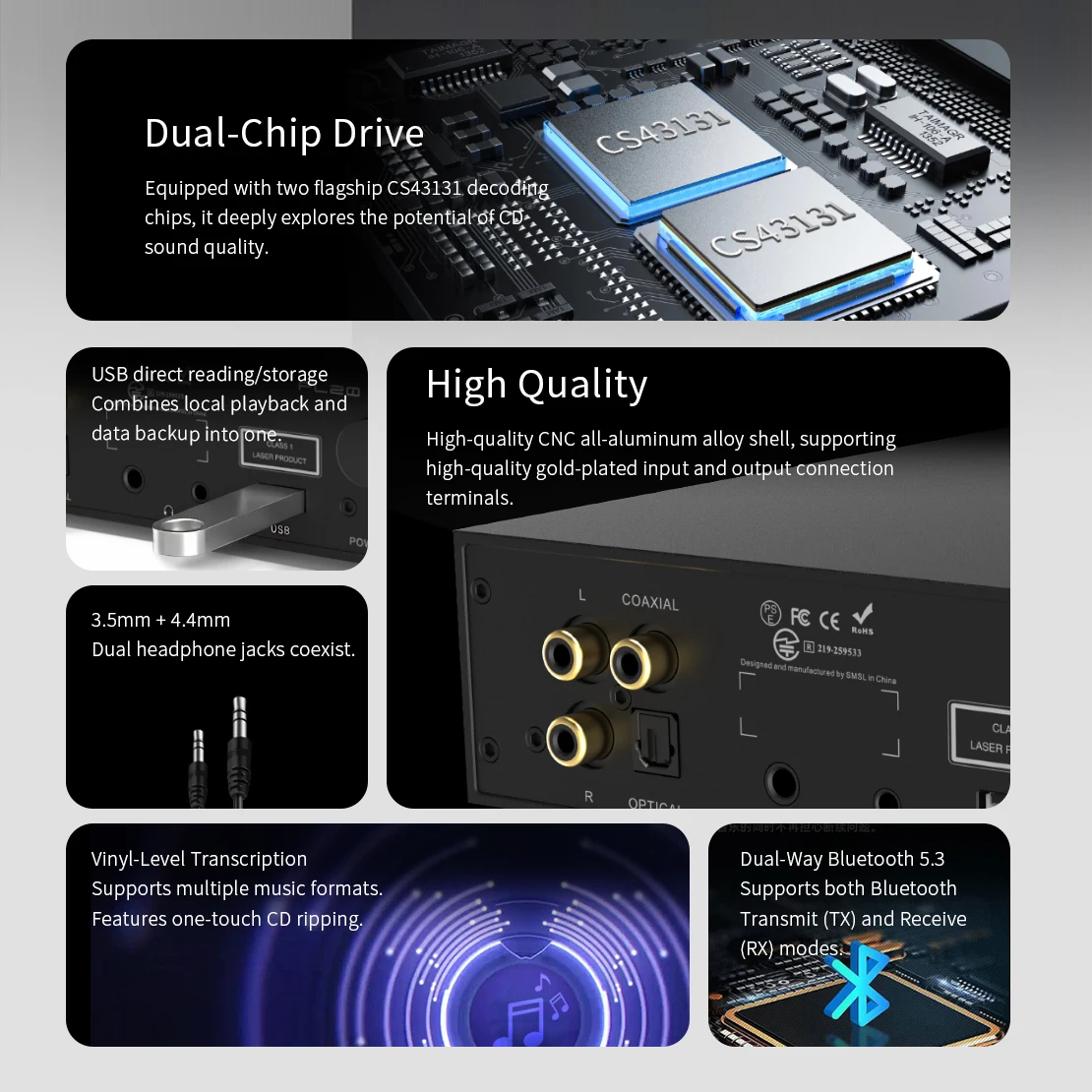

Dual CS43131 DAC Architecture
At the core of the PL20 are dual Cirrus Logic CS43131 DAC chips working in parallel. This configuration provides refined digital-to-analog conversion with a low noise floor and clear, natural sound reproduction. The dual-chip design enhances detail retrieval and dynamic performance compared to single-chip implementations, resulting in a transparent and engaging listening experience from both CDs and digital sources.

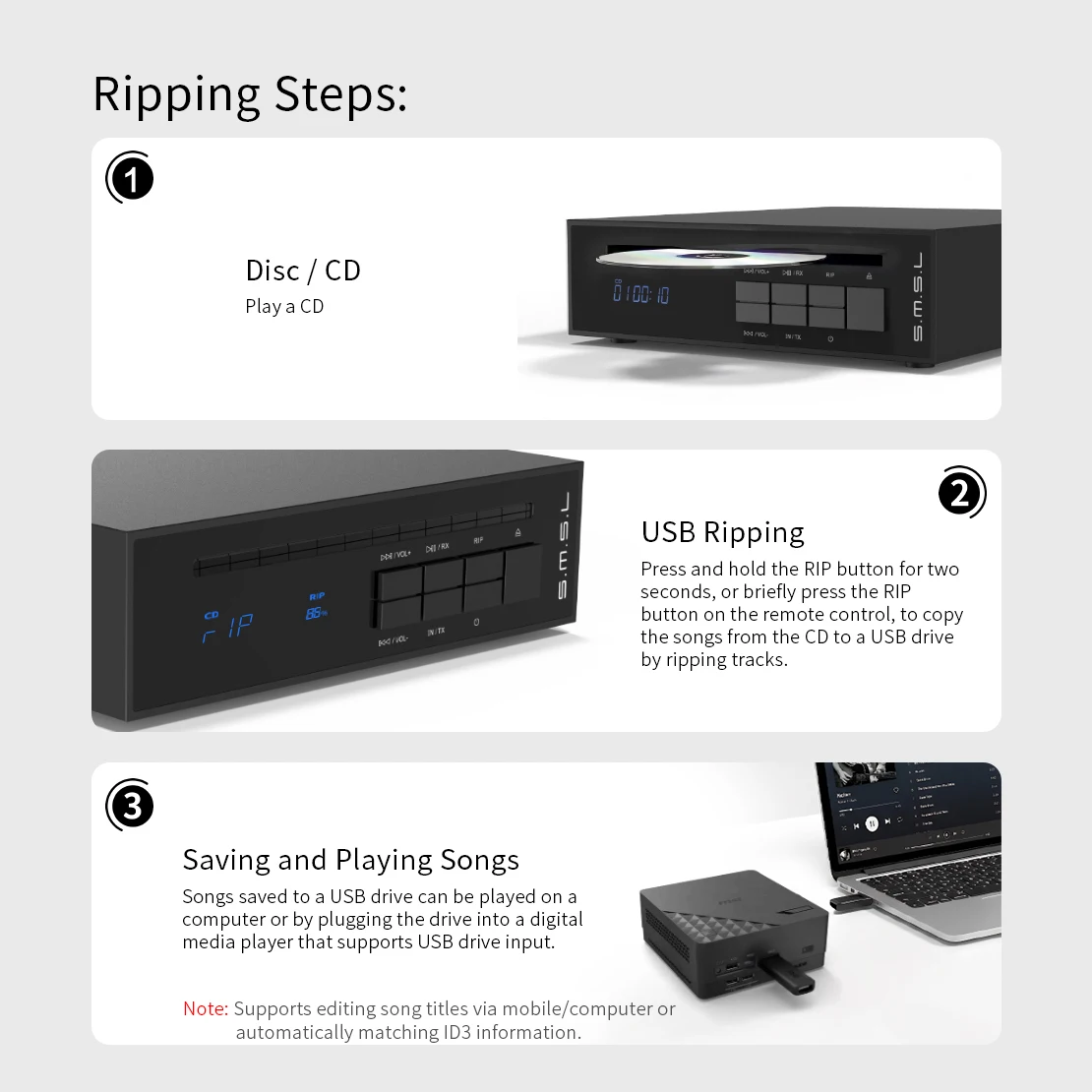

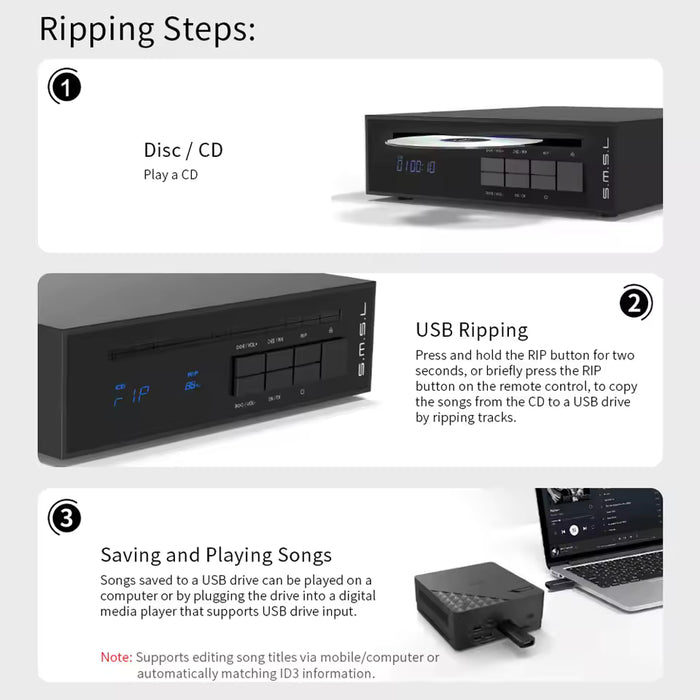

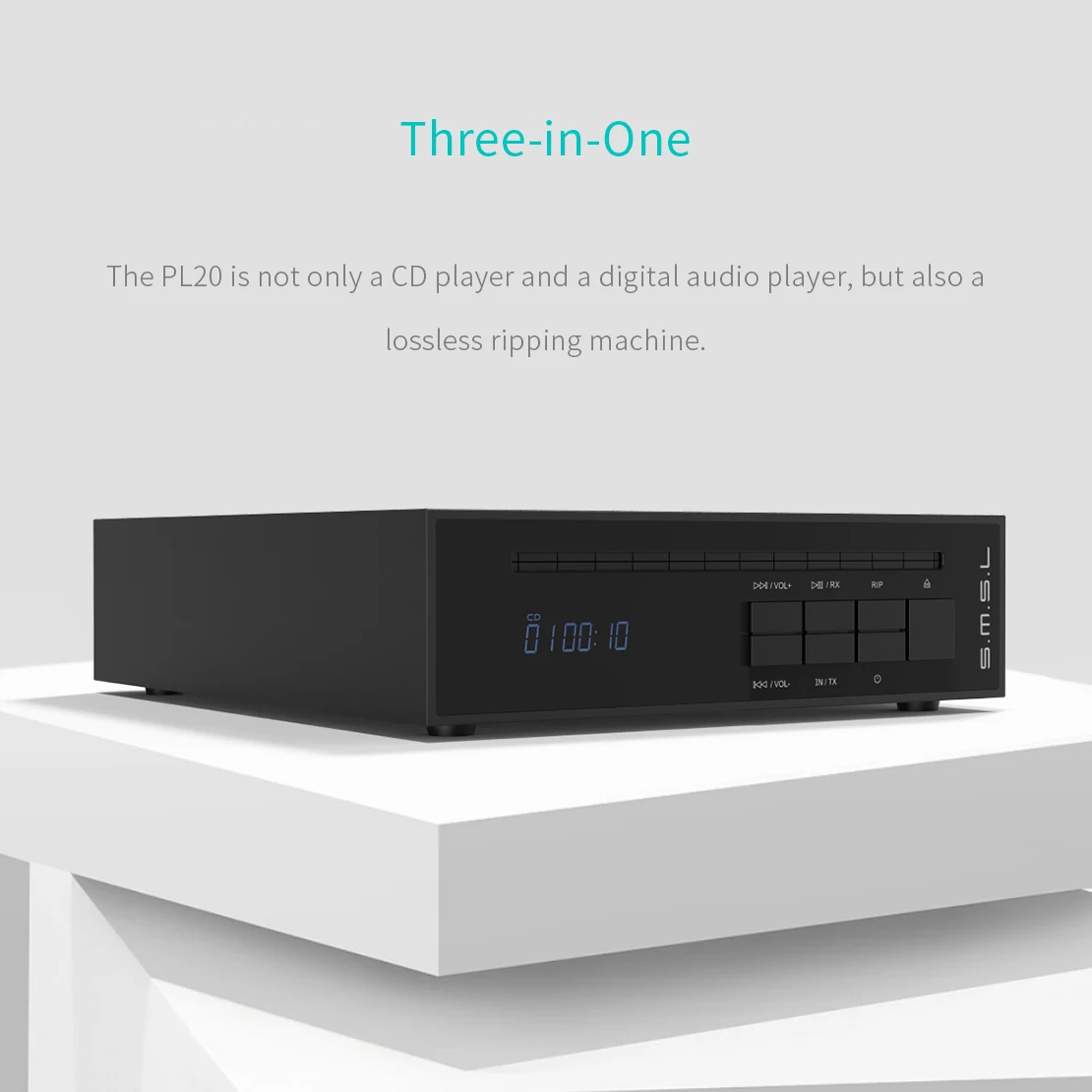

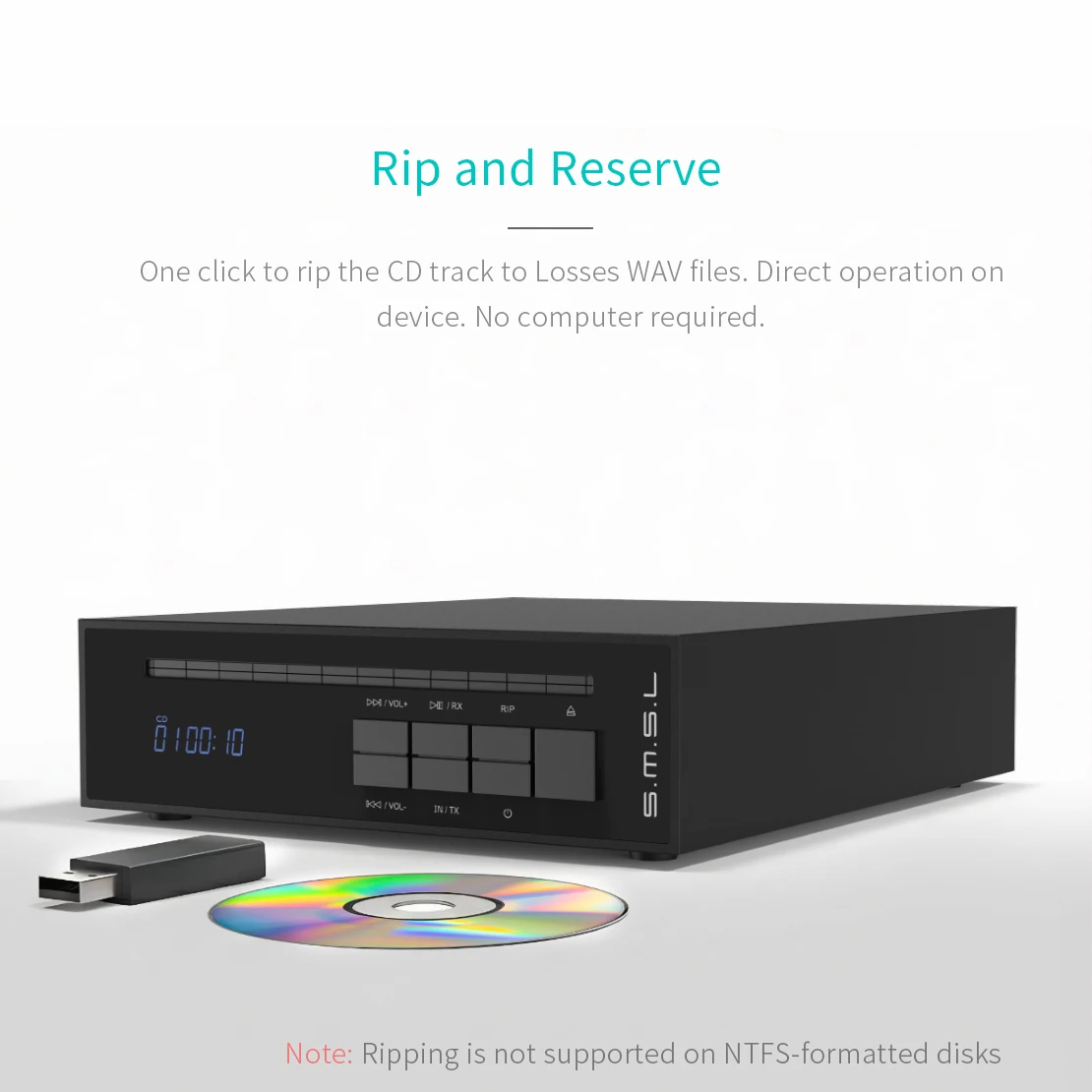

One-Touch Lossless CD Ripping
The PL20 features a convenient one-touch lossless CD ripping function. With a single button press, users can copy an entire CD directly to a connected USB flash drive in high-quality WAV format without the need for a computer or additional software. This makes it easy to digitize physical CD collections while preserving original audio quality for playback on other devices.

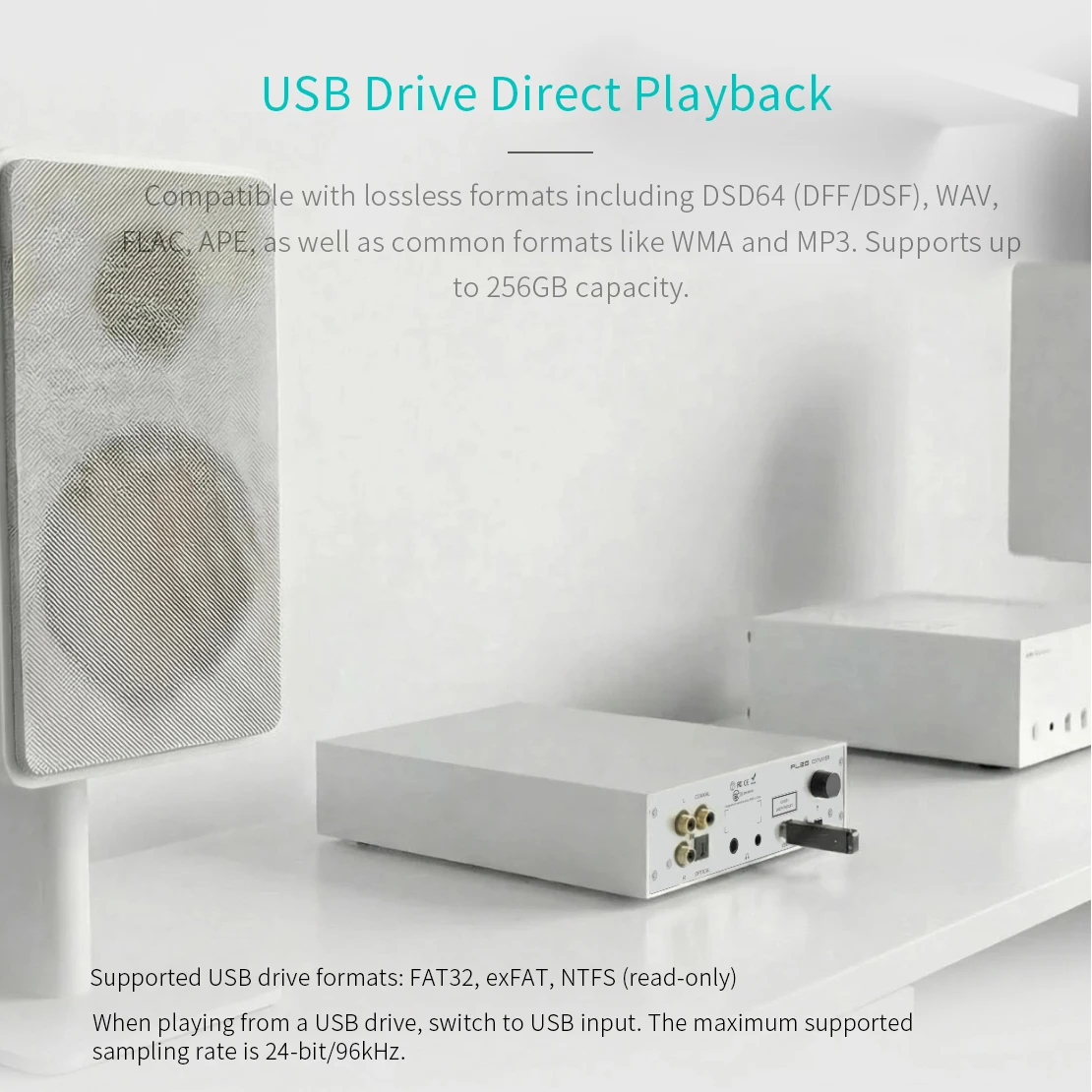

USB Flash Drive Playback and Wide Format Support

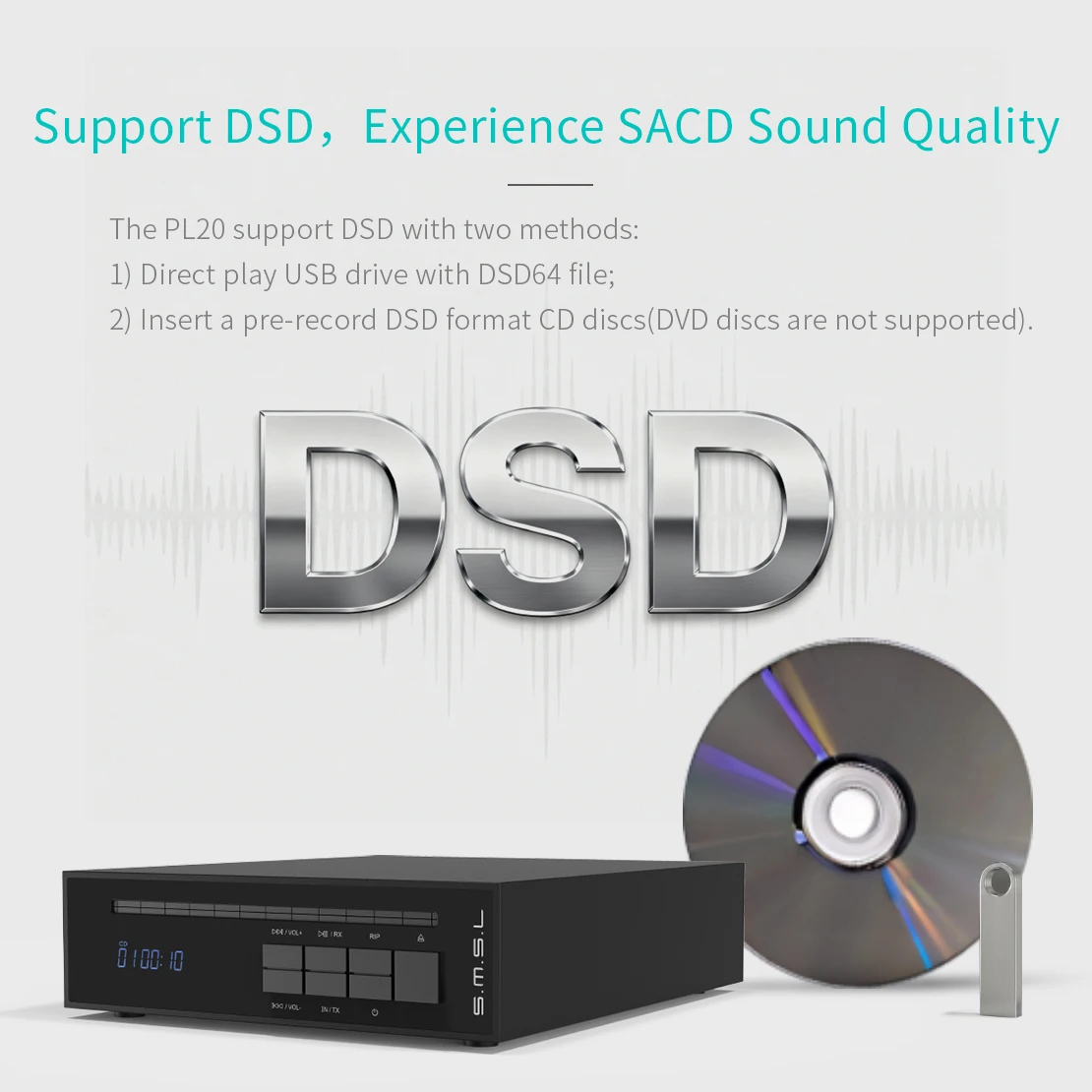

In addition to CD playback, the PL20 supports direct playback from USB flash drives. Compatible formats include DSD64 (DFF/DSF), WAV, FLAC, APE, WMA, and MP3. It also supports CD-DSD discs, allowing users to enjoy high-resolution DSD content from both physical media and digital storage in a single compact unit.

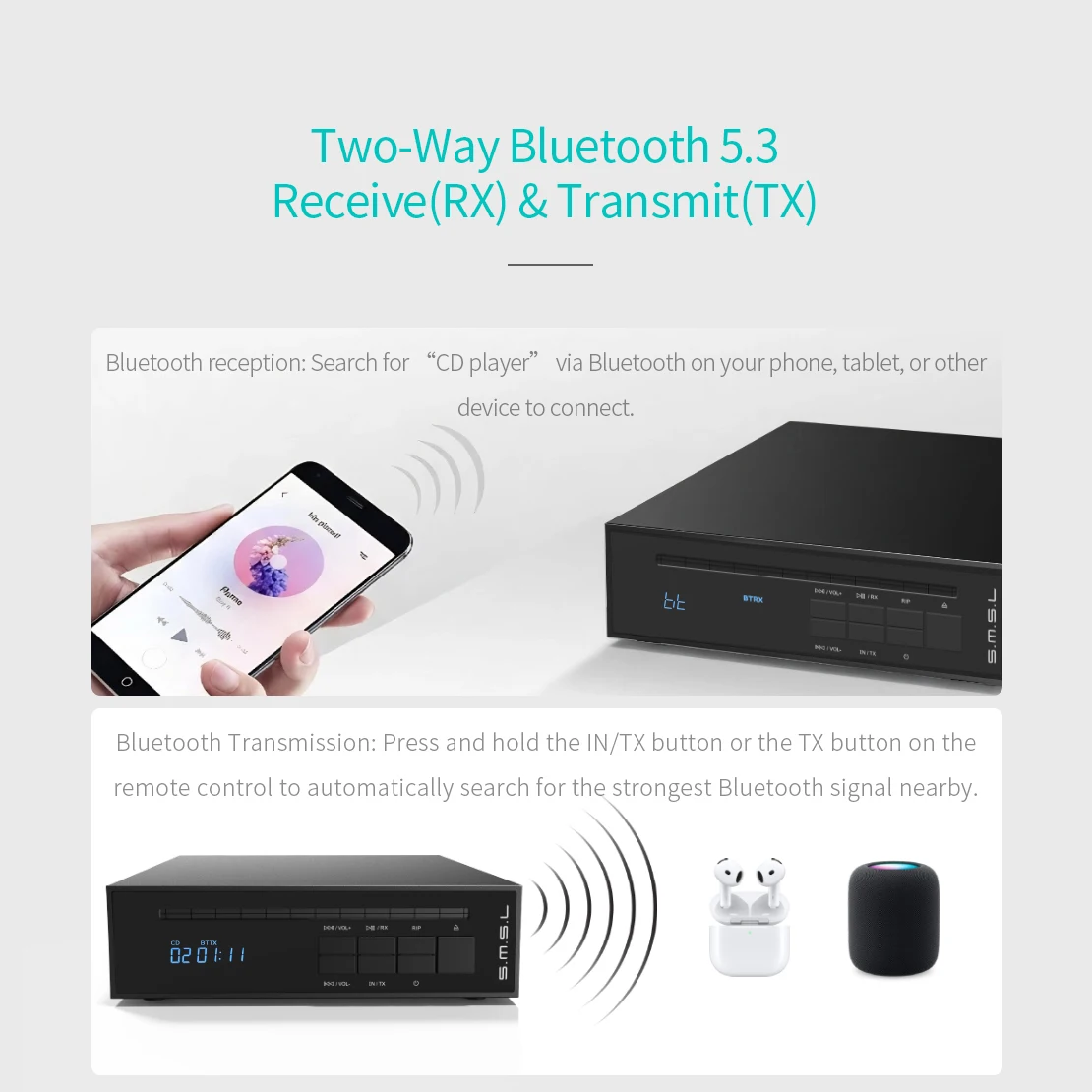

Bidirectional Bluetooth 5.3 Connectivity
The PL20 incorporates bidirectional Bluetooth 5.3, enabling it to function both as a Bluetooth transmitter and receiver. Users can stream audio from smartphones or tablets to the PL20, or transmit audio from the player to wireless headphones and speakers. This dual-mode wireless capability adds significant flexibility for modern listening scenarios.

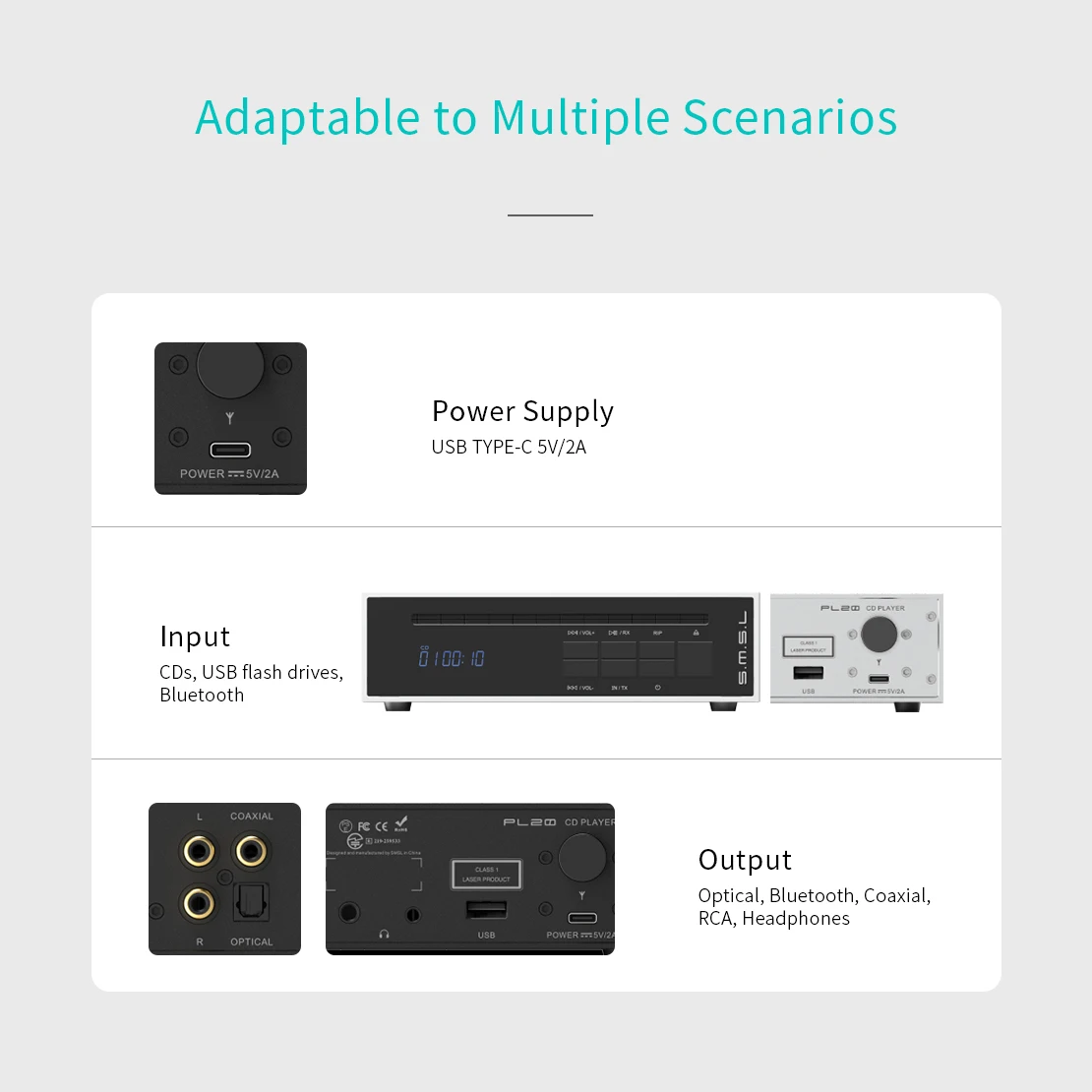

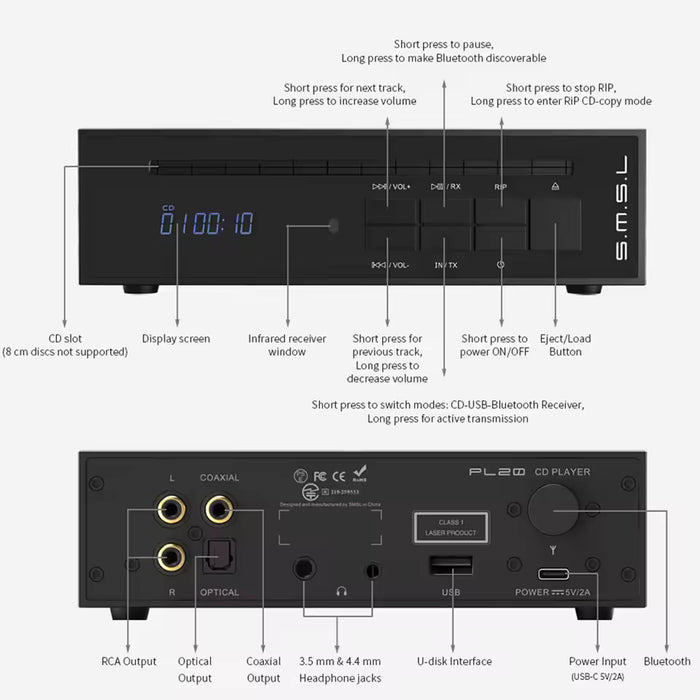

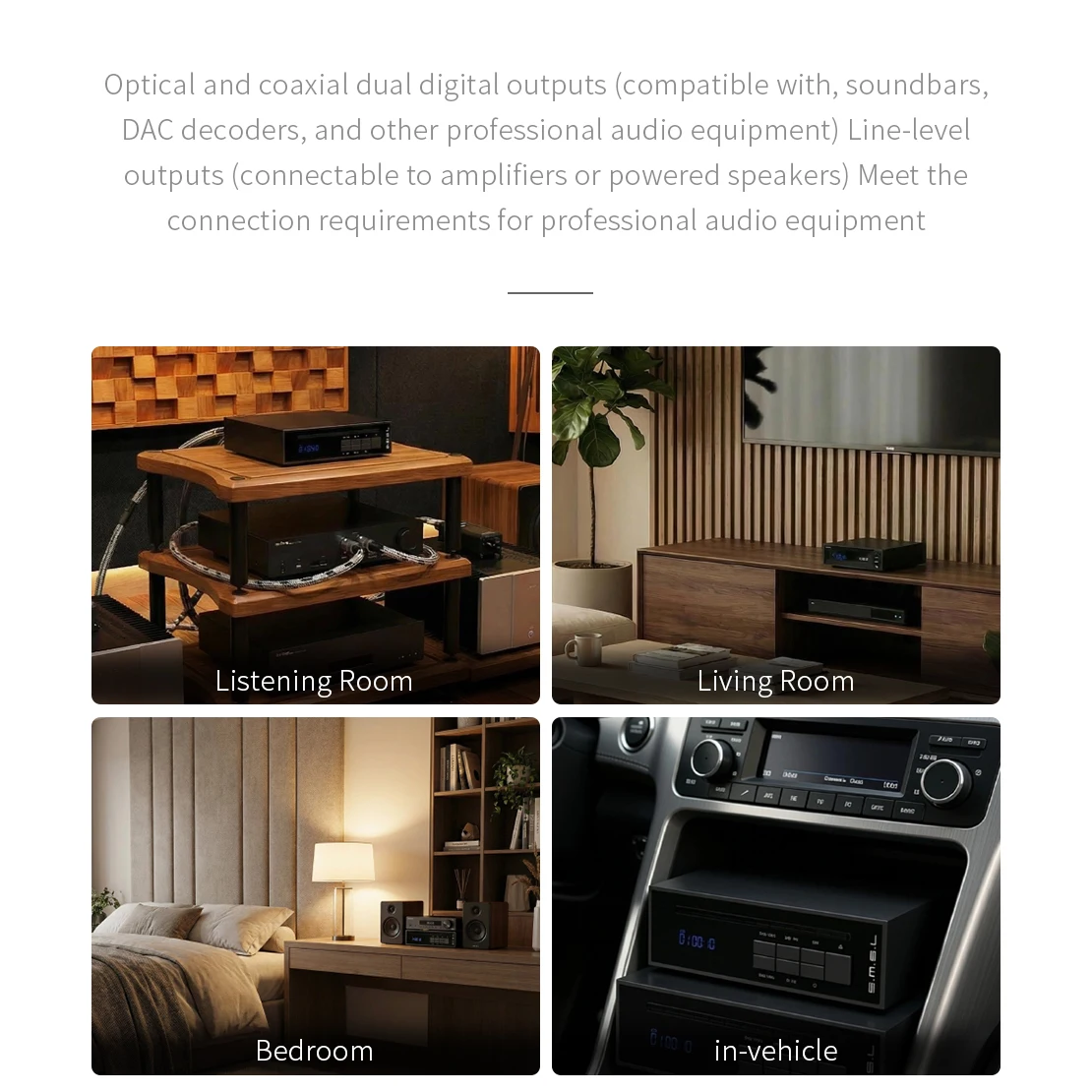

Versatile Analog and Digital Outputs

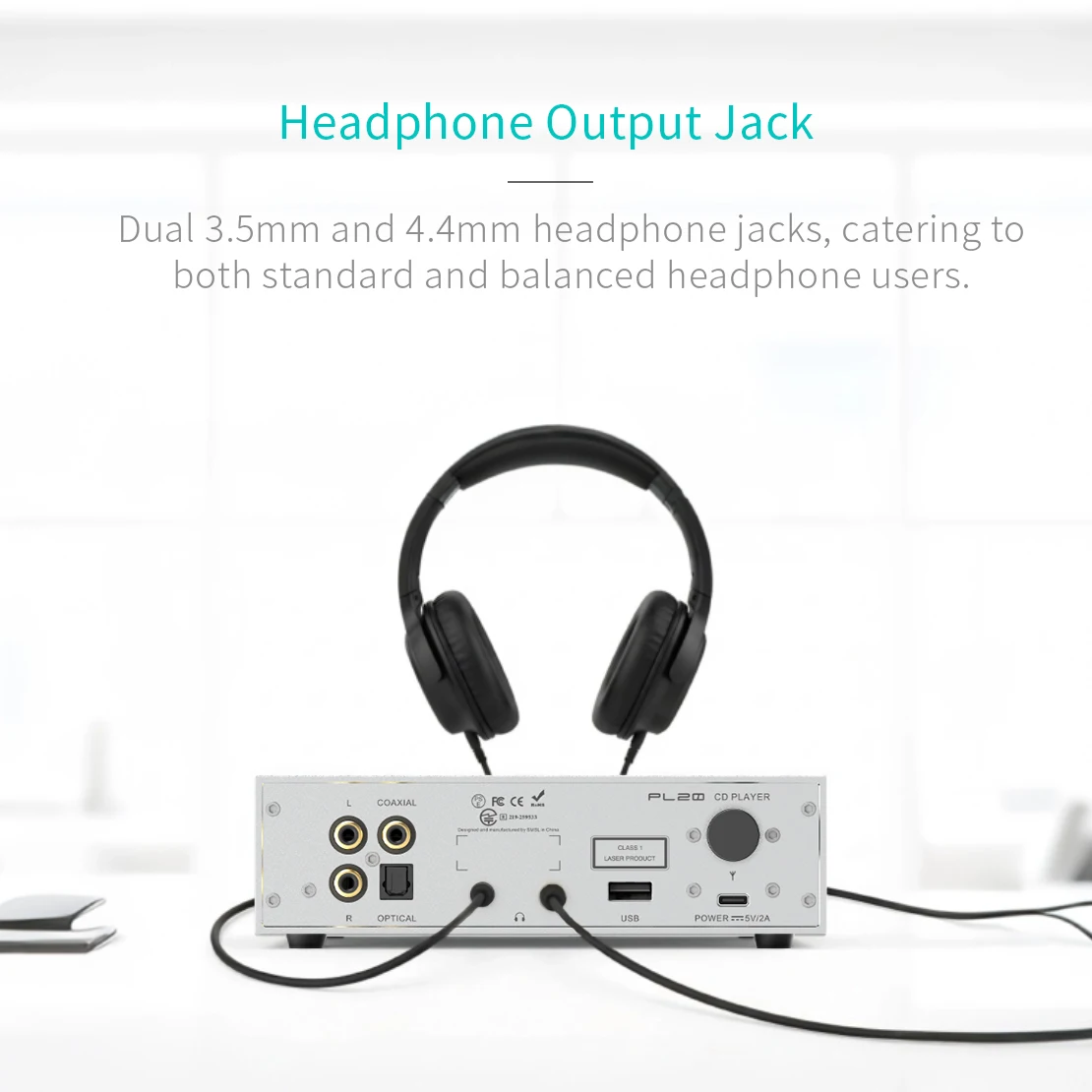

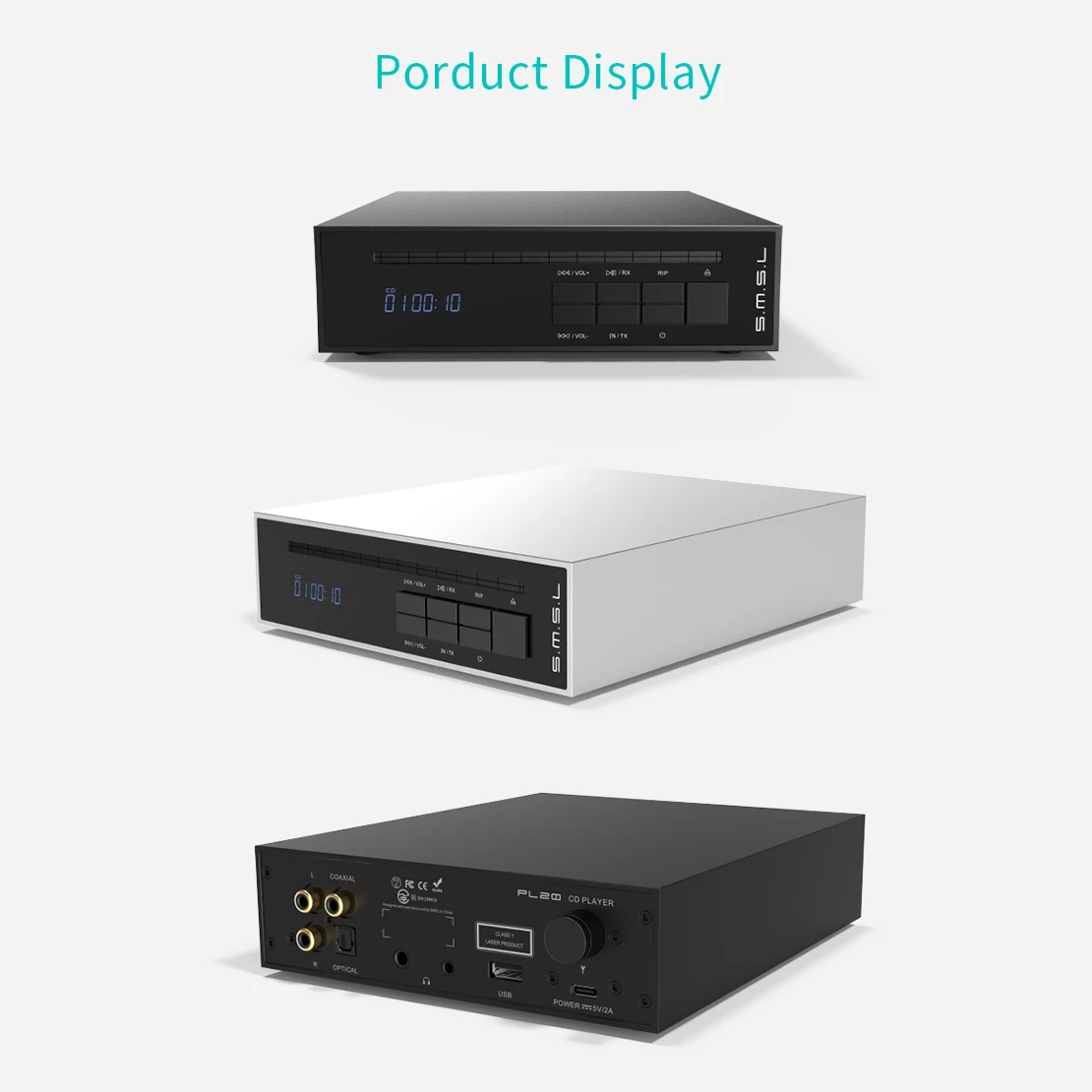

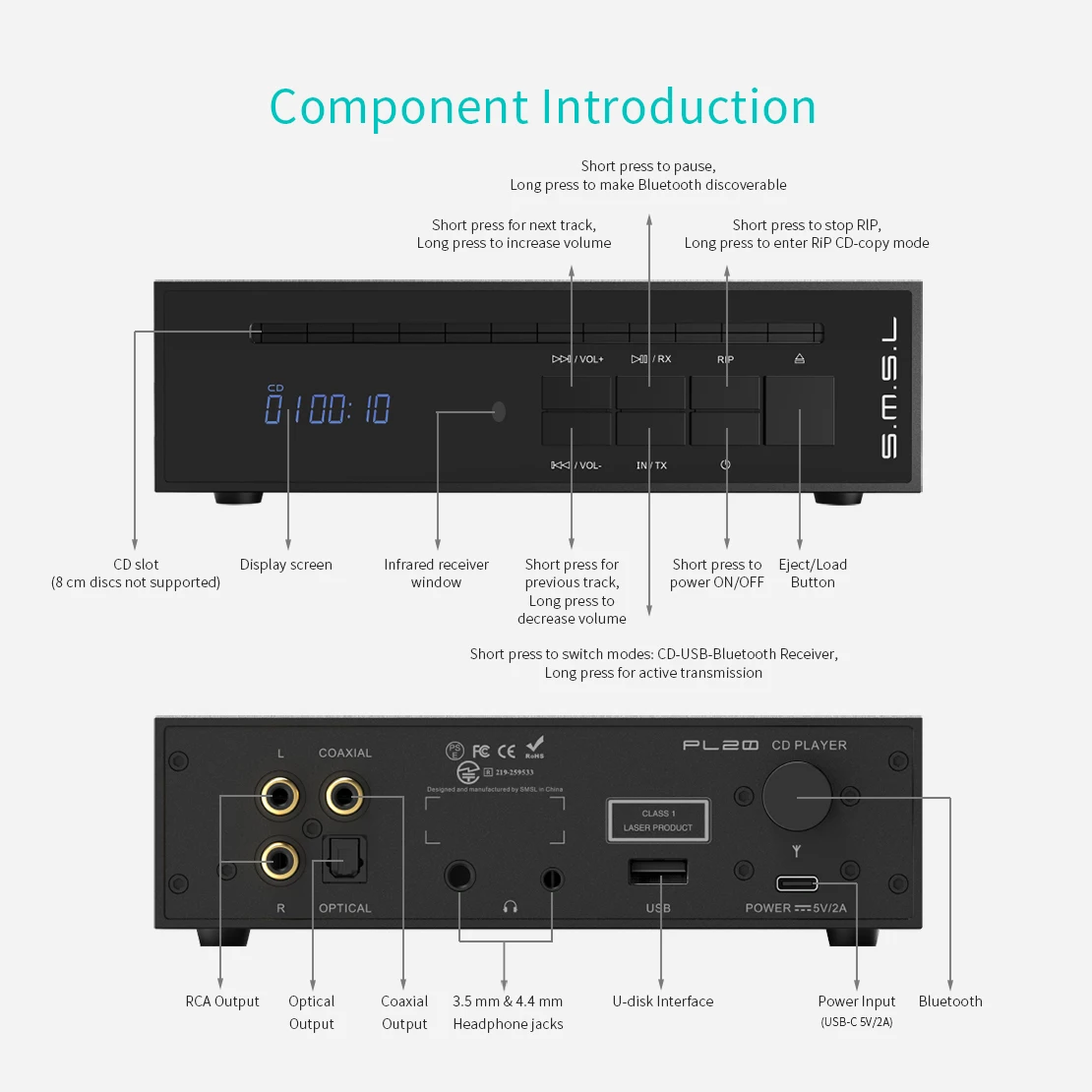

The PL20 offers a comprehensive set of outputs for seamless system integration. It includes stereo RCA line outputs, optical and coaxial digital outputs for use as a CD transport with external DACs, plus both 3.5mm single-ended and 4.4mm balanced headphone outputs. This versatility allows the PL20 to serve as a complete playback solution or as a high-quality digital source in larger systems.
Premium CNC Aluminum Construction

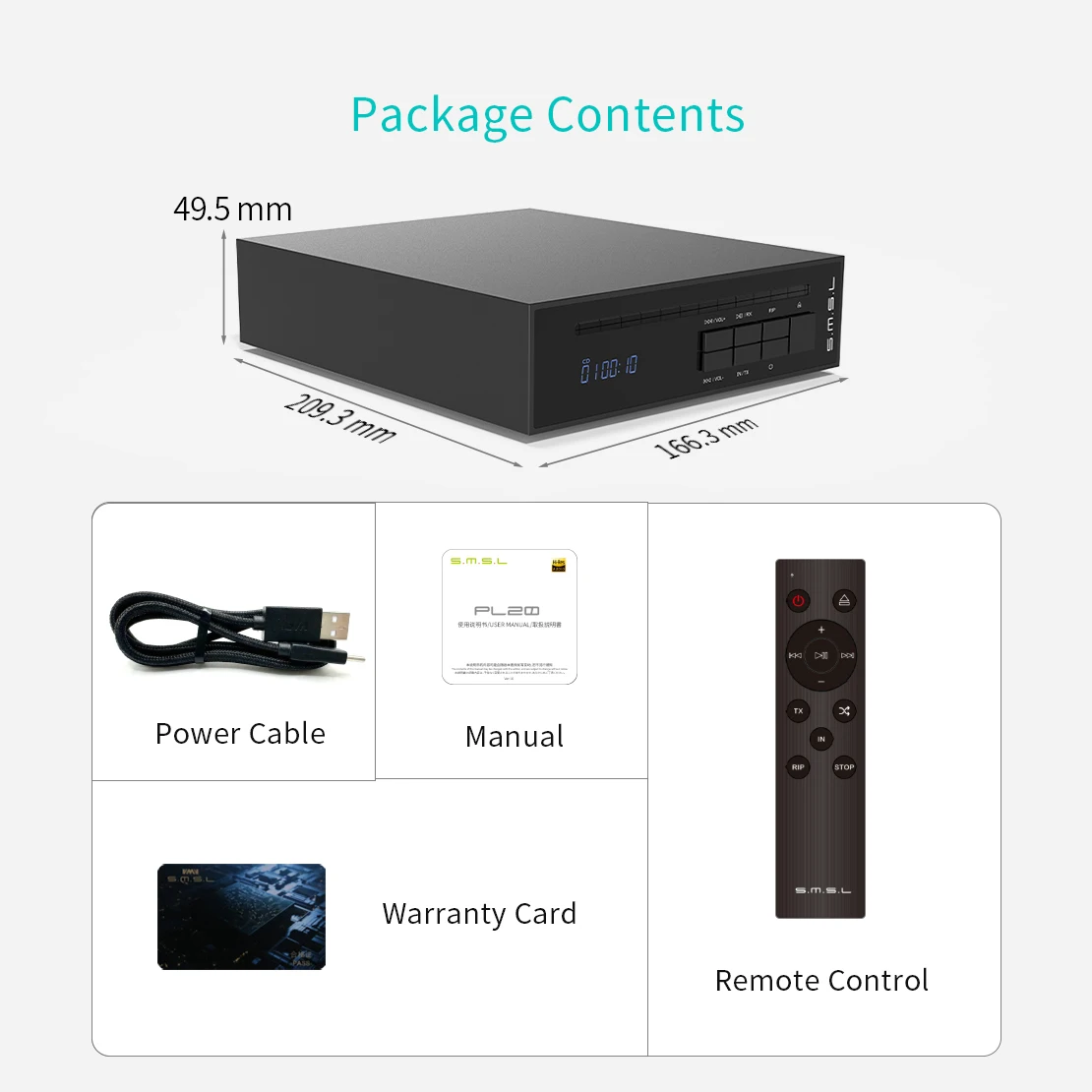

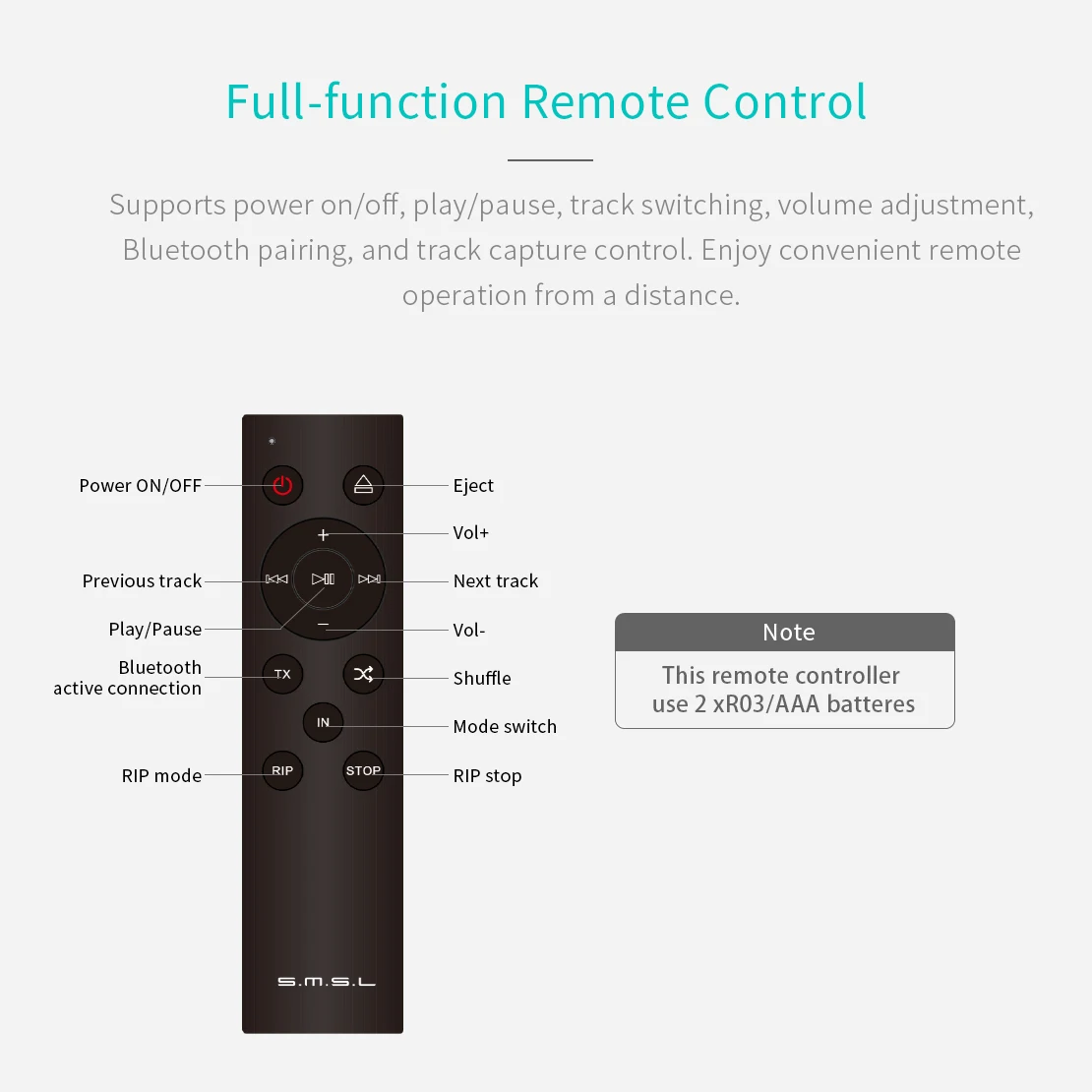

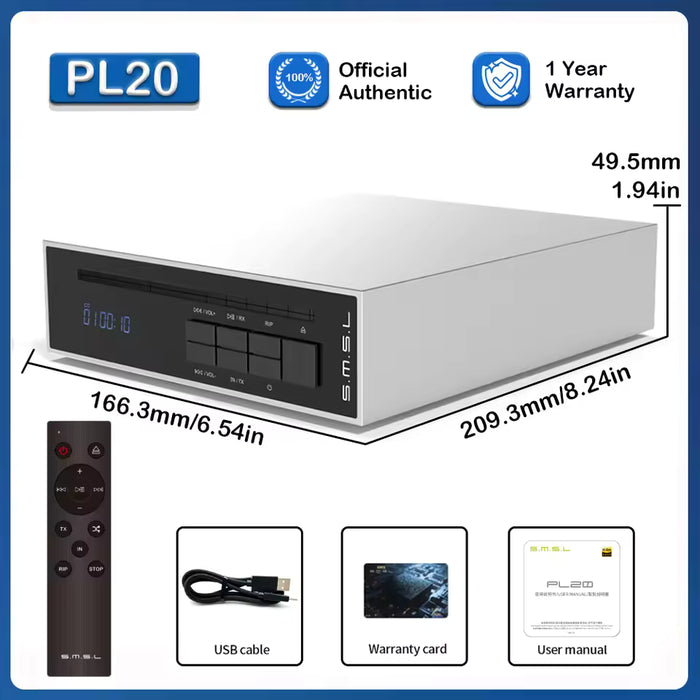

Housed in a solid CNC-machined aluminum alloy chassis measuring 166.3 × 49.5 × 209.3 mm and weighing 1.39 kg, the PL20 combines compact desktop-friendly dimensions with excellent build quality and electromagnetic shielding. Gold-plated connectors and a full-function remote control further enhance usability and long-term reliability.
About SMSL
Foshan ShuangMuSanLin Electronics Co., Ltd. (SMSL) is an established manufacturer specializing in high-fidelity desktop audio. Focusing on digital-to-analog converters, balanced headphone amplifiers, CD players, and power amplifiers, SMSL has built a global reputation for combining rigorous measured performance, clean industrial design, and practical feature sets across a wide range of price points.

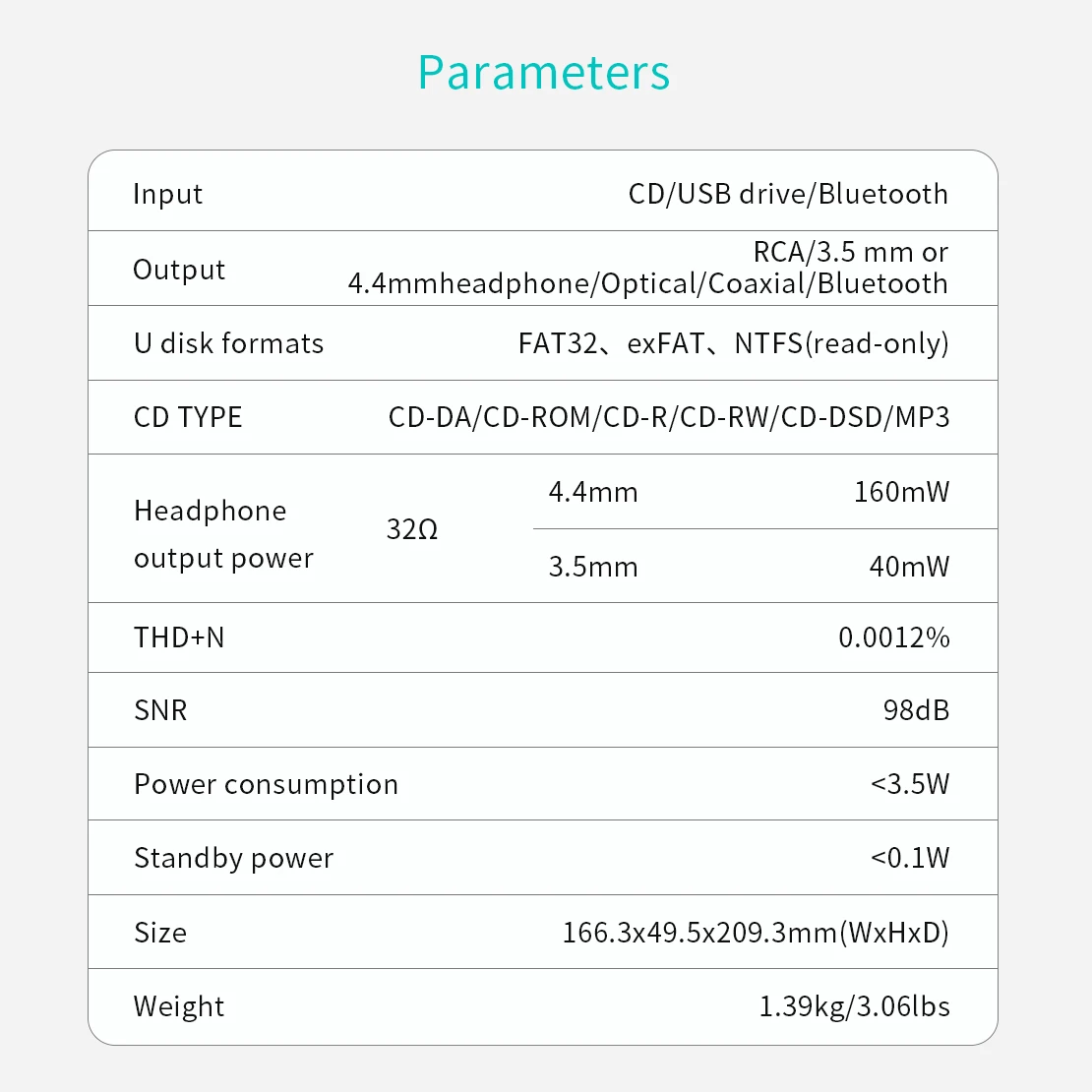

Technical Specifications
Input: CD / USB Flash Drive / Bluetooth
Output: RCA Line Out | 3.5mm Single-Ended | 4.4mm Balanced | Optical | Coaxial | Bluetooth
DAC: Dual CS43131

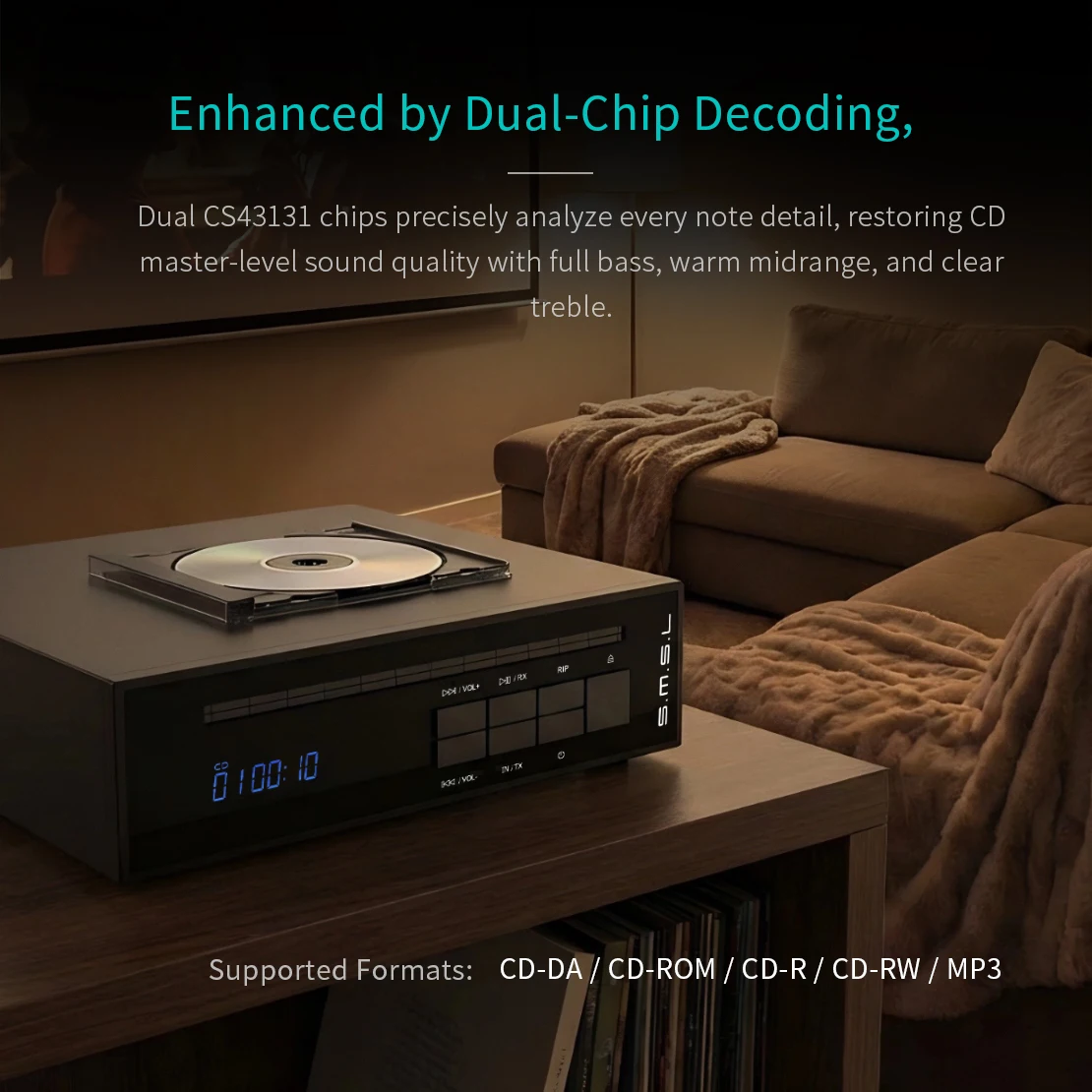

CD Types: CD-DA / CD-ROM / CD-R / CD-RW / CD-DSD / MP3
USB Disk Formats: FAT32, exFAT, NTFS (read-only)
Supported Formats: DSD64 (DFF/DSF), WAV, FLAC, APE, WMA, MP3
Headphone Output Power (32Ω): 4.4mm 160mW | 3.5mm 40mW
THD+N: 0.0012%
SNR: 98dB
Bluetooth: Bidirectional 5.3
Power Consumption: < 3.5W
Standby Power: < 0.1W

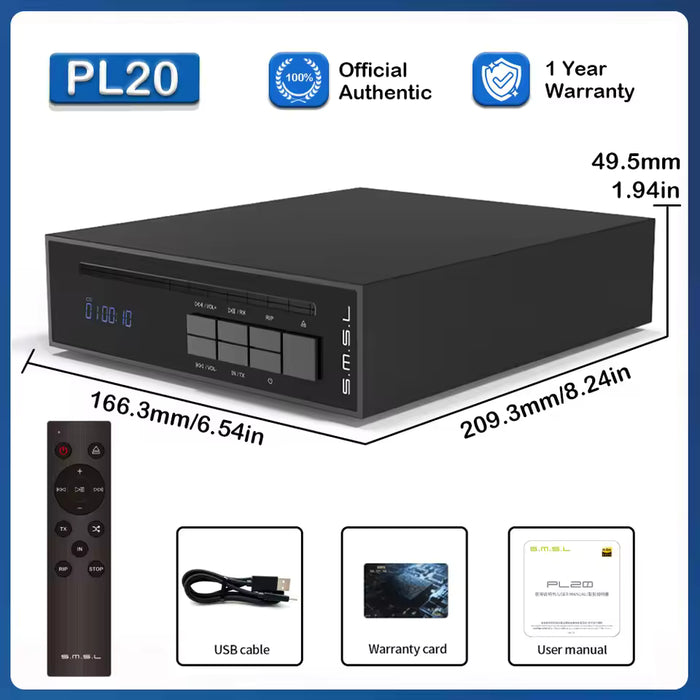

Dimensions: 166.3 × 49.5 × 209.3 mm (W × H × D)
Weight: 1.39 kg
Q&A
What DAC chips does the SMSL PL20 use?
It uses dual Cirrus Logic CS43131 DAC chips for improved performance and lower noise.
Does the PL20 support one-touch CD ripping?
Yes. It can rip CDs directly to a USB flash drive in lossless WAV format with a single button press, without needing a computer.
What Bluetooth features does the PL20 offer?
It features bidirectional Bluetooth 5.3, supporting both transmitting and receiving modes for wireless flexibility.
Can the PL20 play files from a USB flash drive?
Yes. It supports DSD64, WAV, FLAC, APE, WMA, MP3 and other common formats from USB storage.
What headphone outputs are available?
The PL20 provides both a 3.5mm single-ended output (40mW @ 32Ω) and a 4.4mm balanced output (160mW @ 32Ω).
